FORCE 4 EQ
Introducing the Force 4 EQ: Your all-in-one SUV full suspension e-MTB boasting Mullet geometry and internal cable routing frame design. Equipped with integrated lighting, fenders, rear carrier, kickstand, and enhanced comfort features. Powered by Bosch smart system technology, it's the ideal sporty e-bike for outdoor adventures and daily commuting alike.
BATTERY
Internal removable Bosch
PowerTube 625Wh
POWER
Bosch Performance Line CX 85Nm
32 km/hr
RELIABILITY
Hand selected world class components
- $9,499.99
- $9,499.99
- Unit price
- per
Tax Inc.
X
DEPENDABLE PERFORMANCE
The Force 4 EQ is a fully equipped capable SUV eBike for everyday built with all the latest Bosch smart system technology giving you the freedom to explore.
×
![]()
Battery
Up to 875Wh with Internal removable Bosch PowerTube 625Wh, and optional PowerMore 250Wh (sold separately)
×
![]()
Powerful Pedal Assist
Powerful Bosch Performance Line CX Smart System 85Nm, 32 km/hr gets you up any hill with ease.
×
![]()
Data Centre
Customize and access vital ride information on your Bosch Kiox 300 display through the eBike Flow app with ease.
×
![]()
Dependable Drivetrain
Shimano Deore XT 11 speed LinkGlide components sets a new standard for smooth and reliable shifting.
RELIABLE SAFETY
No matter where you choose to go, count on the Force 4 EQ to keep you safe and sound throughout your adventure. What more can you ask for?
Lighting Solutions
Be seen and stay safe when the night starts to fall with built-in lighting solutions.
Effective Brakes
Shimano hydraulic-disc brakes ensure effective and timely stops.
Plan Your Route- optimise your ride
All your ride information in the smart system. Navigate safely with the Kiox 300 through the Bosch eBike Flow App.
Proper Traction
Sturdy Maxxis tires and plush suspension keeps you riding safely.
UNPARALLELED COMFORT
With optimised custom tuned front and rear suspension, the Force 4 EQ has been built with the rider in mind. Being built for performance doesn’t necessarily mean that there should be compromises on comfort.
Suspension
Custom tuned Rock Shox front and rear air suspension soaks up bumps while delivering amazing pedaling efficiency.
Equipped Features
Equipped with fully integrated powerful lighting solutions, alloy fenders, rear carrier and kickstand.
All-round Comfort
Every touch point including the dropper seat post, the saddle and grips are designed with your comfort in mind.
Fingertip Control
The LED remote lets you adjust the rider assist mode, including walk mode. Pair it with the eBike Flow app via Bluetooth for syncing your ride data.
Specification
Frameset
-
Frame
6061 E Bike Specific Aluminum Suspension Mullet Frame with 150mm rear travel and fully intergrated and removable Down Tube battery and internal cable management system
-
Front Suspension
Rock Shox 35 Silver TK Solo Air 110 x 15mm boost thru axle, 160mm travel with rebound adjust and lockout, full fender compatible
-
Rear Suspension
Rock Shox Deluxe Select+RL custom tuned with rebound adjust and lockout
Motor
-
Drive Unit
Bosch Performance Line CX Gen 4 250watt 85Nm, 32km/hr with walk assist mode
-
Battery
Bosch PowerTube, 36V 16.7Ah 625Wh
-
Display
Bosch Kiox 300
-
Controller Switch
Bosch LED remote
Wheels
-
Hubs
Shimano TC500 Boost 110x15mm Thru axle 32H front, TC500 Boost 148x12mm Thru axle 32H rear
-
Rims
Alex EM30 Double Wall Front=29”, Rear=27.5” 32H F/V
-
Tyres
Maxxis Ikon 29x2.35” front, 27.5x2.35” rear Foldable, TR EXO puncture protection
Drivetrain
-
Shifter
Shimano Deore XT SL-M8130 11 Speed
-
Derailleur
Shimano Deore XT LinkGlide RD-M8130 SGS Shadow Plus 11 Speed
-
Crankset
FSA Alloy with 34T Chainring and Chain device
-
Cassette
Shimano Cassette LG400 LinkGlide 11-50T 11 Speed
-
Chain
Shimano CN-LG500 LinkGlide
-
Pedals
Sinch Alloy platform
Components
-
Brakeset
Shimano MT420 4 Piston Hydraulic disc, 203mm rotors
-
Saddle
Sinch Sport Comfort 177mm Gel
-
Seat post
Dropper, S=120, M,L=150, XL=175mm travel, Internal routing, 30.9mm
-
Bar
Sinch Alloy Comfort, 20mm rise, 15° sweep, 680mm
-
Stem
Fastback 20 31.8mm, 20-degree
-
Headset
Acros AZF-656 integrated
-
Grips
Sinch Comfort Gel Lock-on triple density
Accessories
-
Lights
Litemove SE-90 stem mounted Front, Pimento Large XEr Rear with Brake Sensor
-
Accessories
Alloy Fenders, Rear Carrier 20kg load capacity, Kickstand, Range extender PowerMore 250 compatible, Sinch accessory case
-
Sizes
S,M,L,XL

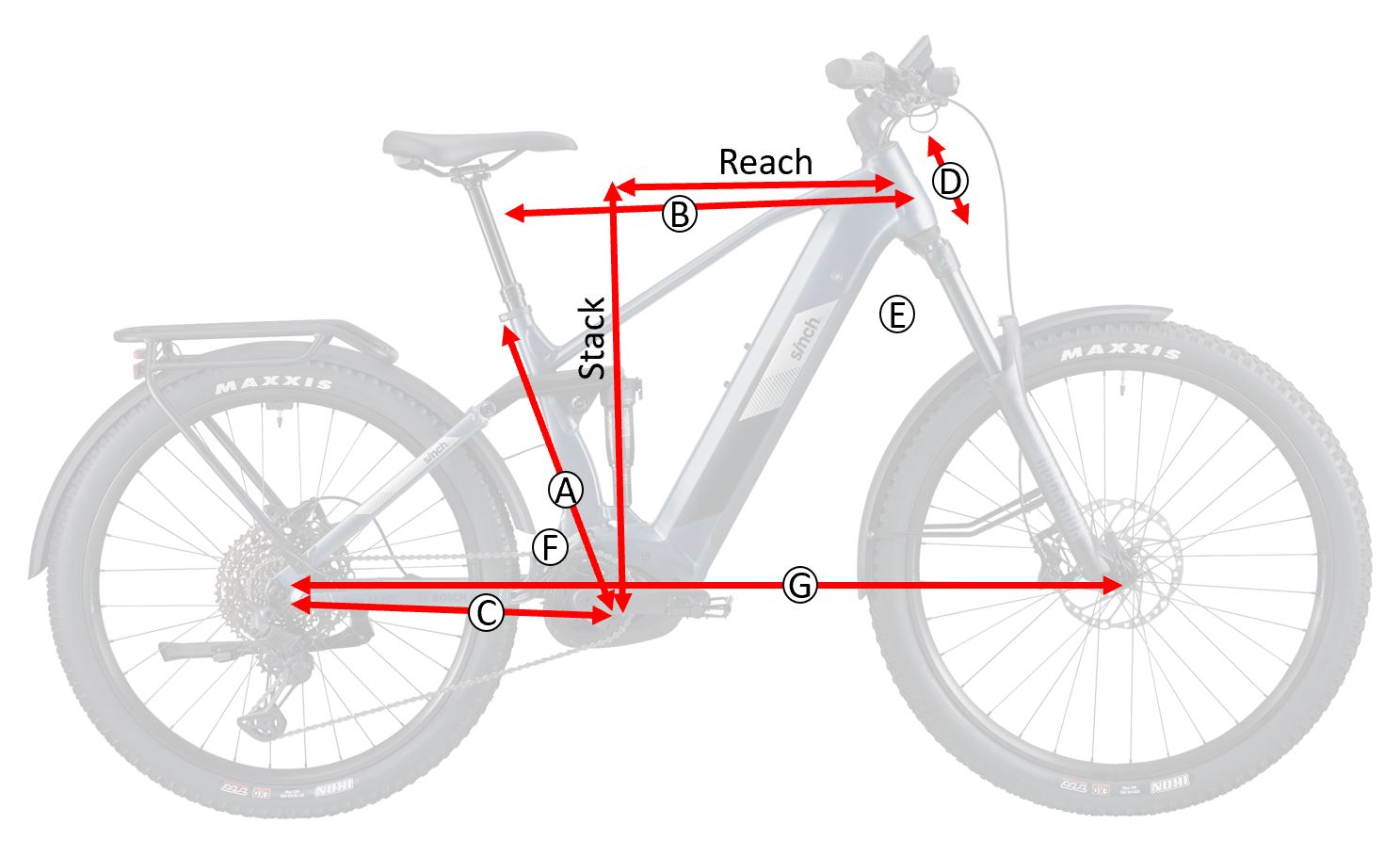

Geometry
S
M
L
XL
A - Seat Tube
390
440
470
510
B - Top Tube Horizontal
589
621
638
661
C - Chain Stay
460
460
460
460
D - Headtube Length
120
130
140
150
E - Head Angle
65
65
65
65
F - Seat Angle
75.3
75.3
75.3
75.3
G - Wheelbase
1216
1251
1270
1294
Standover
722
726
726
738
Stack
633
642
651
660
Reach
425
455
470
490
Crank Length
165
165
165
165
Stem Length
50
70
70
90
Size
S
M
L
XL
Rider Height
156-166cm
164-176cm
174-186cm
184-200cm
