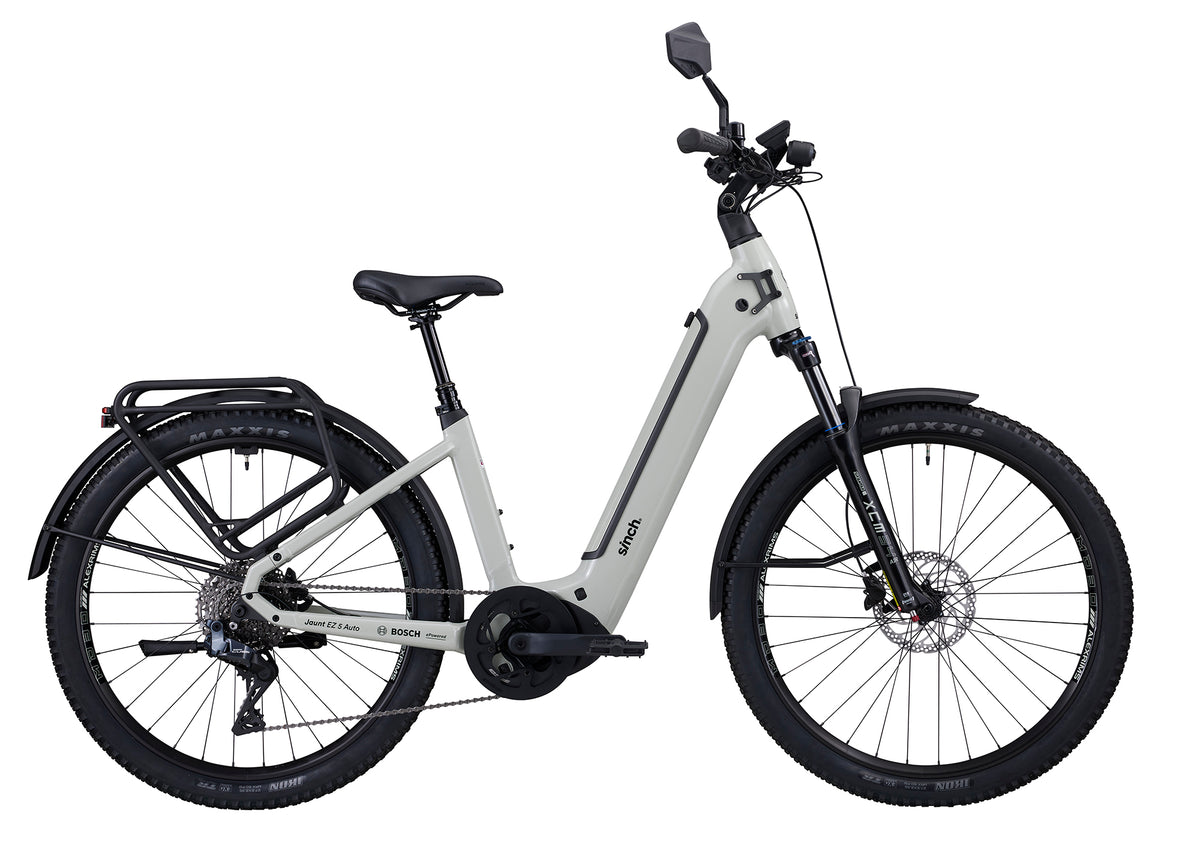

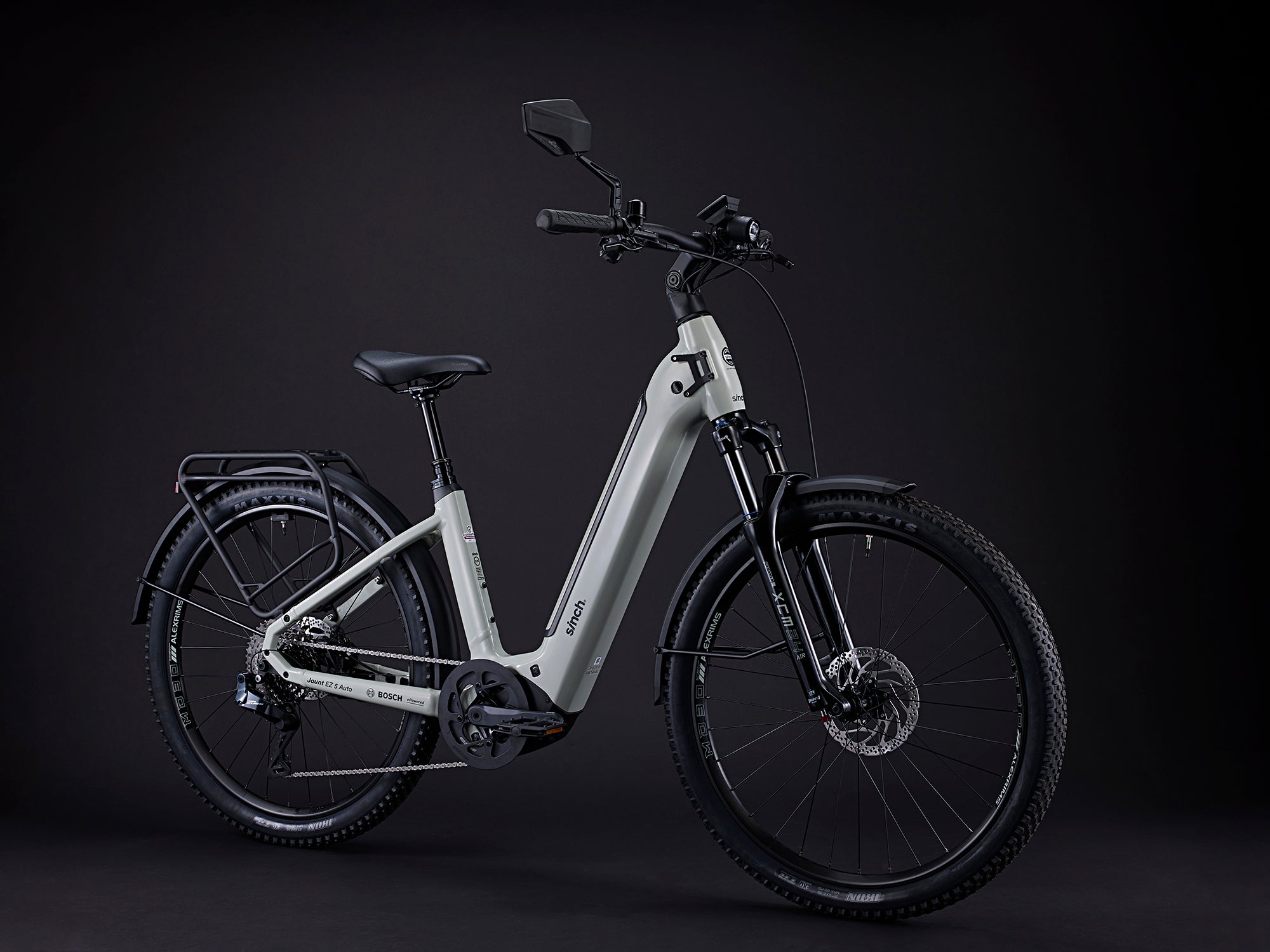

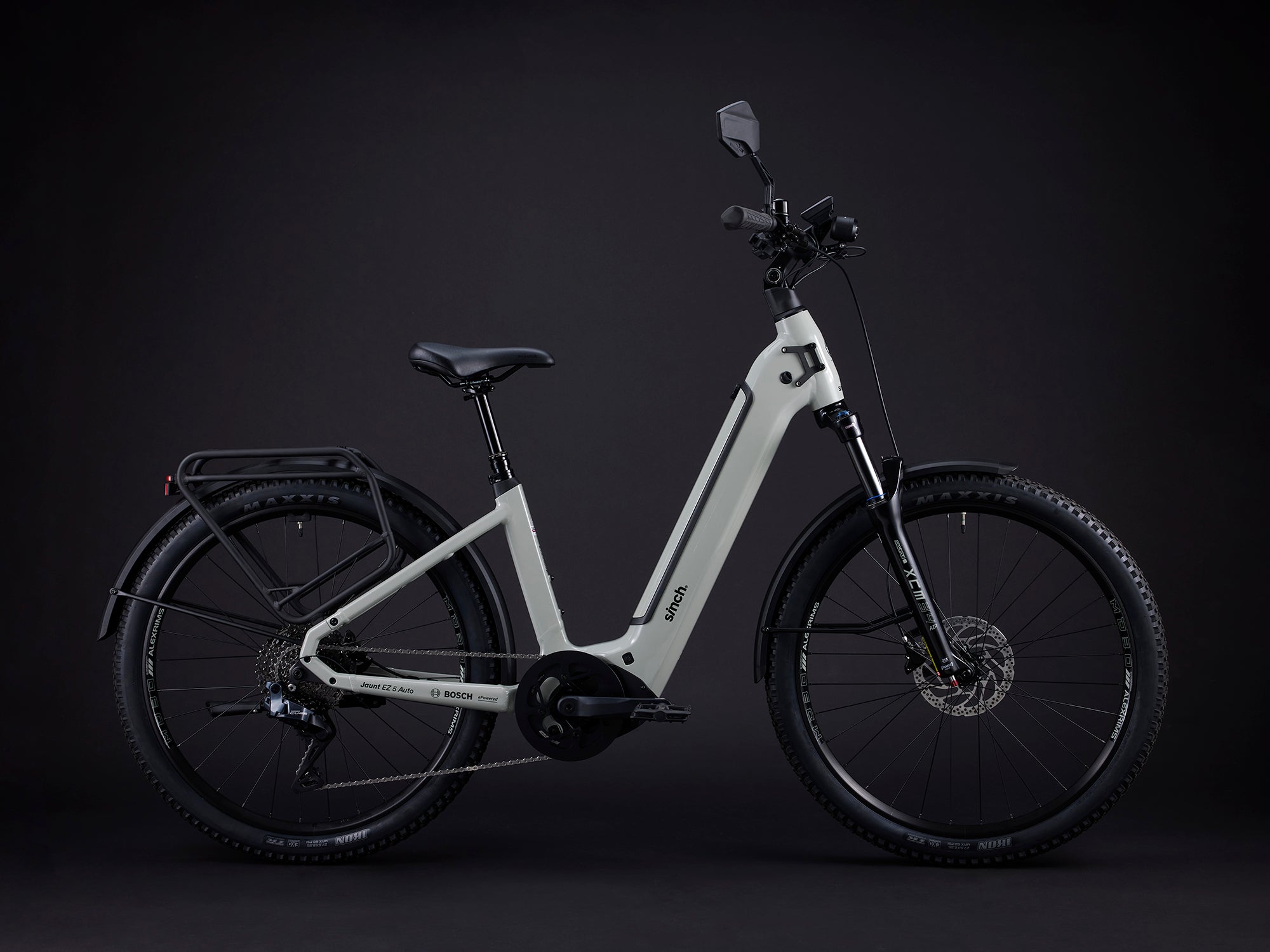

Jaunt EZ 5 Auto
Meet the Jaunt EZ 5 Auto, the step-through e-bike built for everyday adventures. Featuring Shimano CUES Di2 automatic shifting. Automatically changes gears for you so you can focus on the ride. Powered by the Bosch Performance Line Sport 90 Nm Smart System delivering assistance up to 45 km/hr paired with a 800Wh PowerTube battery expandable to 1,050Wh with PowerMore 250. The Jaunt EZ 5 Auto is ready for anything. A suspension dropper seatpost makes mounting simple, while premium suspension and intuitive controls keep every ride smooth, safe, and fun.
The Jaunt EZ 5 Auto makes every ride more enjoyable. Just hop on, pedal, and ride.
BATTERY
Internal removable Bosch PowerTube
800Wh
POWER
Bosch Performance Line Sport 90Nm
45km/hr
RELIABILITY
Hand selected world class components
- $7,999.99
- $7,999.99
- Unit price
- per
Tax Inc.
DEPENDABLE PERFORMANCE
×
![]()
Battery
Powered by the internal Bosch PowerTube 800Wh battery, expandable to 1050Wh with the optional PowerMore 250 (sold separately).
×
![]()
Powerful Pedal Assist

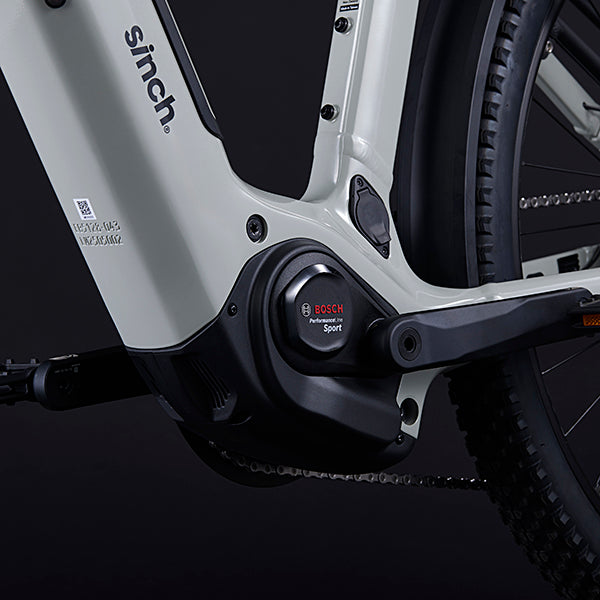

Powerful Bosch Performance Line Sport Smart System 90Nm assisting you to 45km/hr.
×
![]()
Data Centre

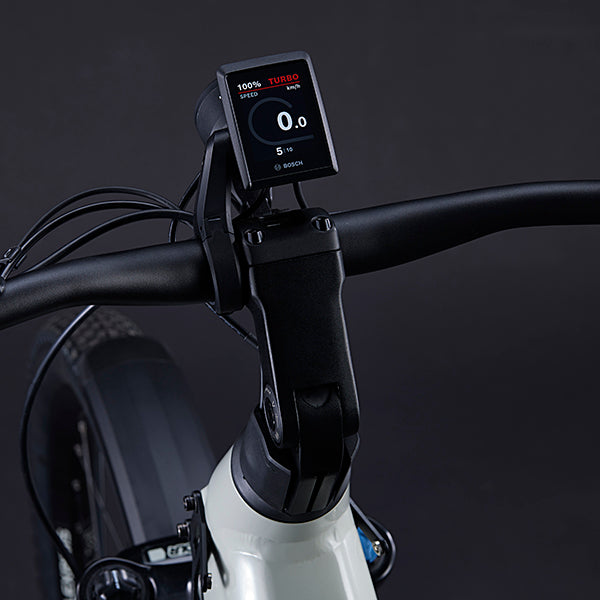

View key ride data with the Bosch Kiox 300 display, connected via the eBike Flow app for smarter, more personalized rides.
×
![]()
Dependable Drivetrain

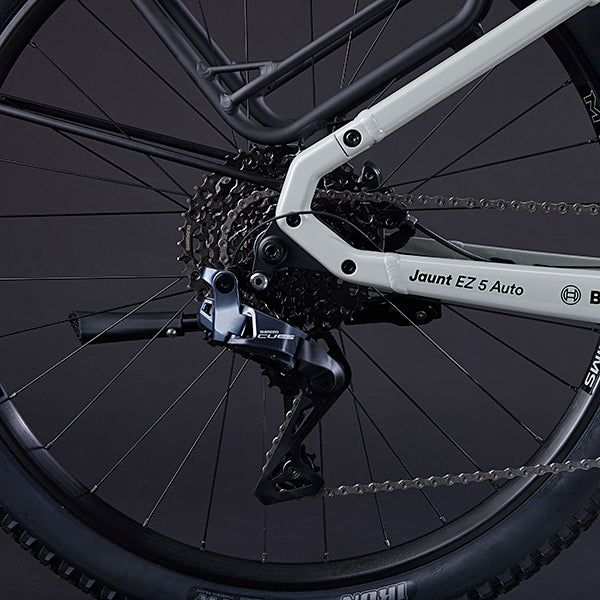

Shimano Cues Di2 Automatic 10 speed LinkGlide components sets a new standard through Automatic shifting putting you in the right gear all the time.
RELIABLE SAFETY
Lighting Solutions
Be seen and stay safe with built-in front and rear lighting solutions.

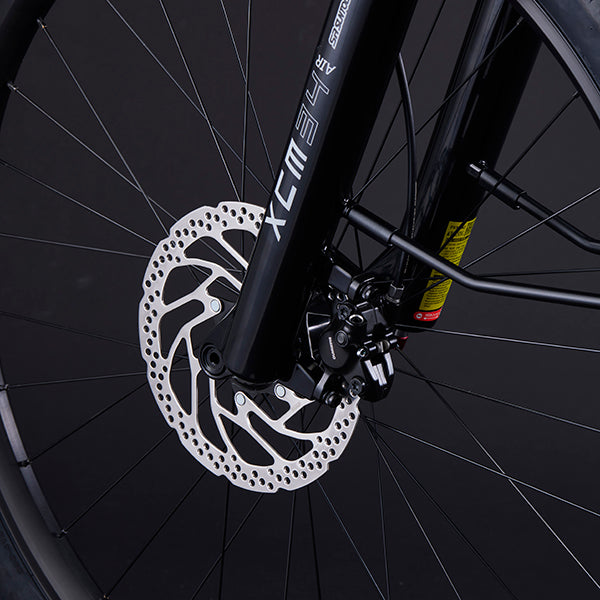

Effective Brakes
Shimano hydraulic-disc brakes ensure effective and timely stops.

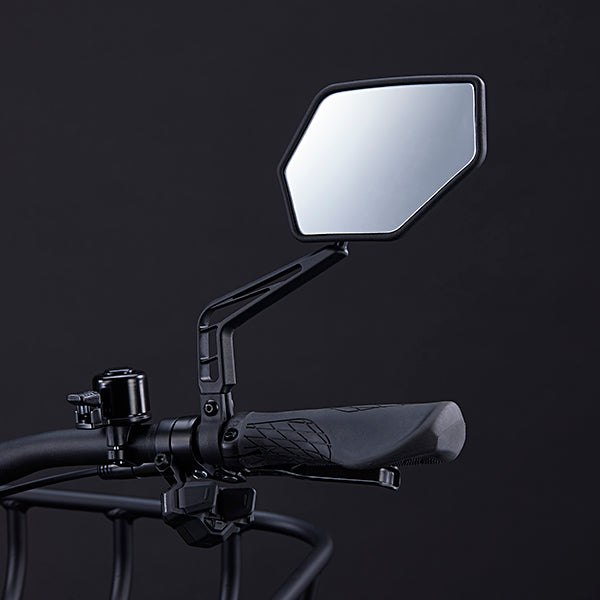

Safety Mirror
Ride smarter and safer with the integrated rearview mirror, designed to increase visibility and awareness of your environment.
Proper Traction
Ride with confidence on reliable Maxxis tires and enjoy a smooth, safe journey with plush suspension.
UNPARALLELED COMFORT
Smooth Ride

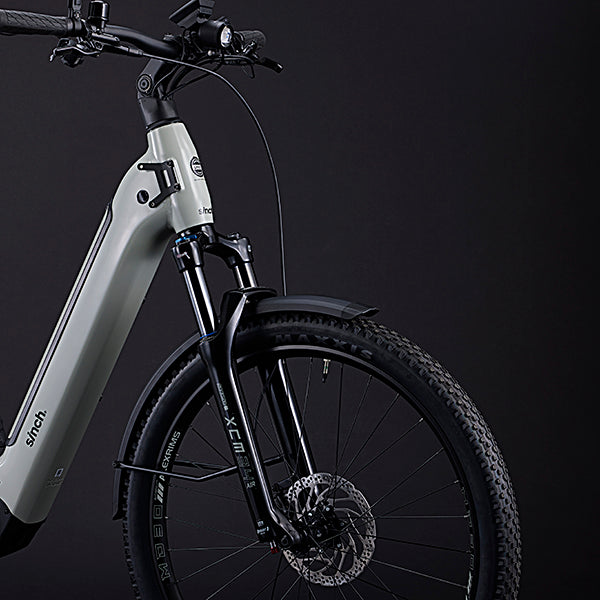

100mm of front air suspension travel is designed to make every ride comfortable.
Equipped Features
Equipped with fully integrated powerful lighting solutions, alloy fenders and noise reduction kick stand.
All-round Comfort

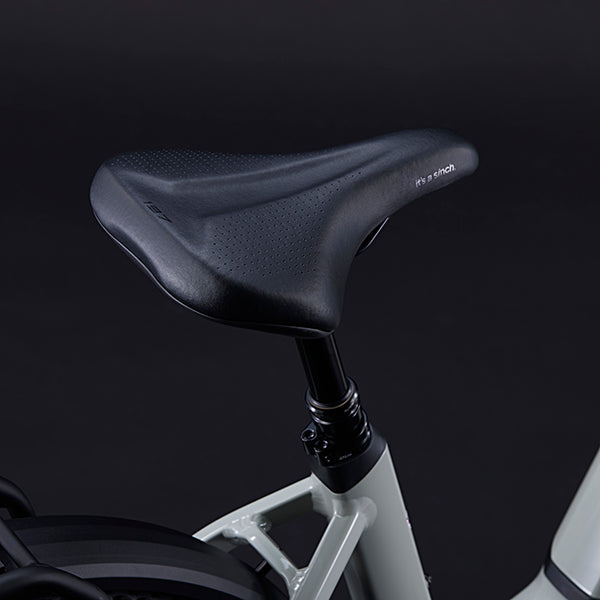

Every touch point including the suspension dropper seat post, saddle, handlebars and grips are designed with your comfort in mind.

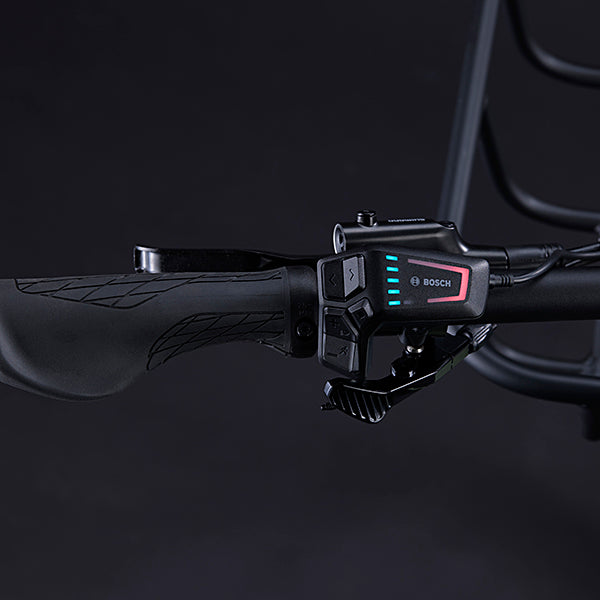

Fingertip Control

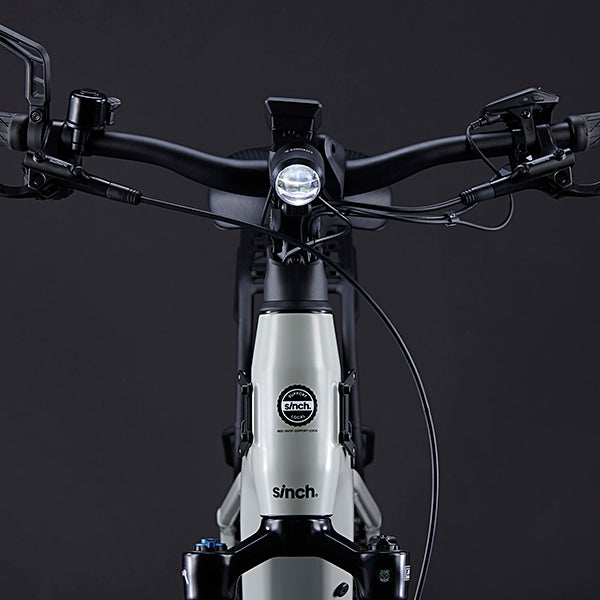

The Bosch Kiox 300 and LED Remote deliver a clean, connected setup with an intuitive layout and bright display, keeping data clear and hands safely on the bars.
CHARGING YOUR BIKE

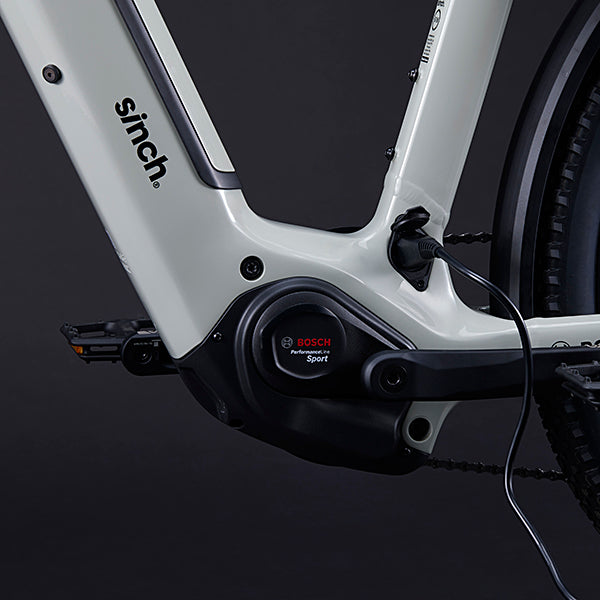

Charging on Bike

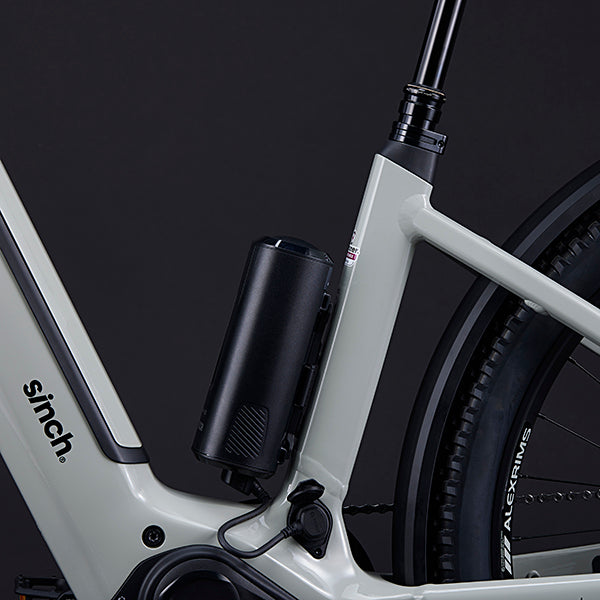

Use the satellite charging port to charge your Bosch battery on the bike.
Battery Cover
Independent battery cover keeps your bike sealed while the battery is removed.
Charging off Bike

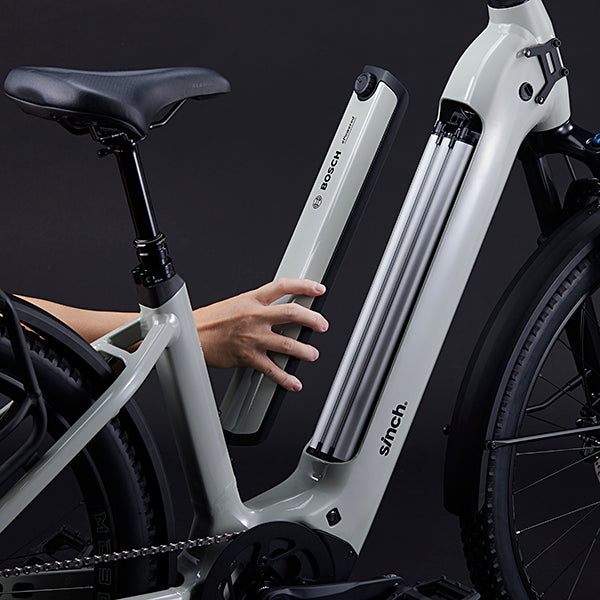

Internal removable Bosch battery can be charged off your bike.
Sinch Carry Case
Keep your charger, battery lock key and bike manuals together in your Sinch carry case.
Specification
Frameset
-
Frame
6061 E-Bike Specific Step-through Aluminum Frame with Fully intergrated removable Down Tube battery and internal cables
-
Front Suspension
SR Suntour XCM34 AIR, 110x15mm boost thru axle, 100mm travel with low speed rebound adjust and lockout
-
Rear Suspension
N/A
Motor
-
Drive Unit
New Bosch Performance Line Sport BDU347Y 250watt, 90Nm, Max Power 700W, Max support 400%, 45km/hr with walk assist mode
-
Battery
New Bosch PowerTube, 800Wh
-
Display
Bosch Kiox 300
-
Controller Switch
Bosch LED remote
Wheels
-
Hubs
Shimano TC500 Boost 110x15mm Thru axle 32H front, TC500 Boost 148x12mm Thru axle 32H rear
-
Rims
Alex MD30 Double Wall 27.5” 32H F/V
-
Tyres
Maxxis Ikon 27.5x2.35” Foldable, 60tpi, TR/EXO puncture protection
Drivetrain
-
Shifter
Shimano Di2 SW-EN605-R SEIS with Manual or Auto shift and free shift
-
Derailleur
Shimano Cues Auto Di2 RD-U8050 GS Shadow 10 Speed
-
Crankset
FSA Alloy with 42T Chainring and Chainguard
-
Cassette
Shimano Cassette LG400 LinkGlide 11-43T 10 Speed
-
Chain
Shimano CN-LG500 Link Glide
-
Pedals
Sinch Nylon platform
Components
-
Brakeset
Shimano MT200 Hydraulic disc, 180mm front/160mm rear rotors
-
Saddle
Sinch Comfort 197mm Gel Dual density
-
Seat post
Suspension AIR Adjust Dropper, S/M & M/L=100, XL=120mm travel, Internal routing, 31.6mm
-
Bar
Alloy Comfort, 30mm rise, 15° sweep, 700mm
-
Stem
Sinch Alloy Adjustable, 31.8mm
-
Headset
Integrated with internal cables
-
Grips
Sinch Comfort Gel Lock-on dual density
Accessories
-
Lights
Litemove SE 90 Lux Front, Spanninga Pimento Large Rear with sensor Brakelight function
-
Accessories

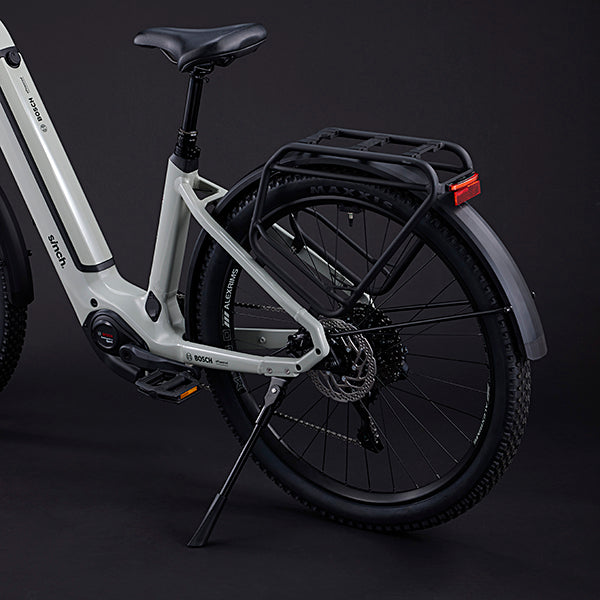

Alloy Fenders, MIK HD Rear Carrier 27kg load capacity, Noise reduction Kickstand, Range extender PowerMore 250 compatible, Multi-angle adjustable Mirror, Sinch accessory case
-
Sizes
S/M, M/L, XL=27.5”
-
Warranty
Lifetime on Hardtail Frames and 5 years on Rear suspension Frame Sinch Bikes - 2 years motor and battery. Other parts follow manufacturer warranty.
Product specifications may change without notice. Non-binding information.

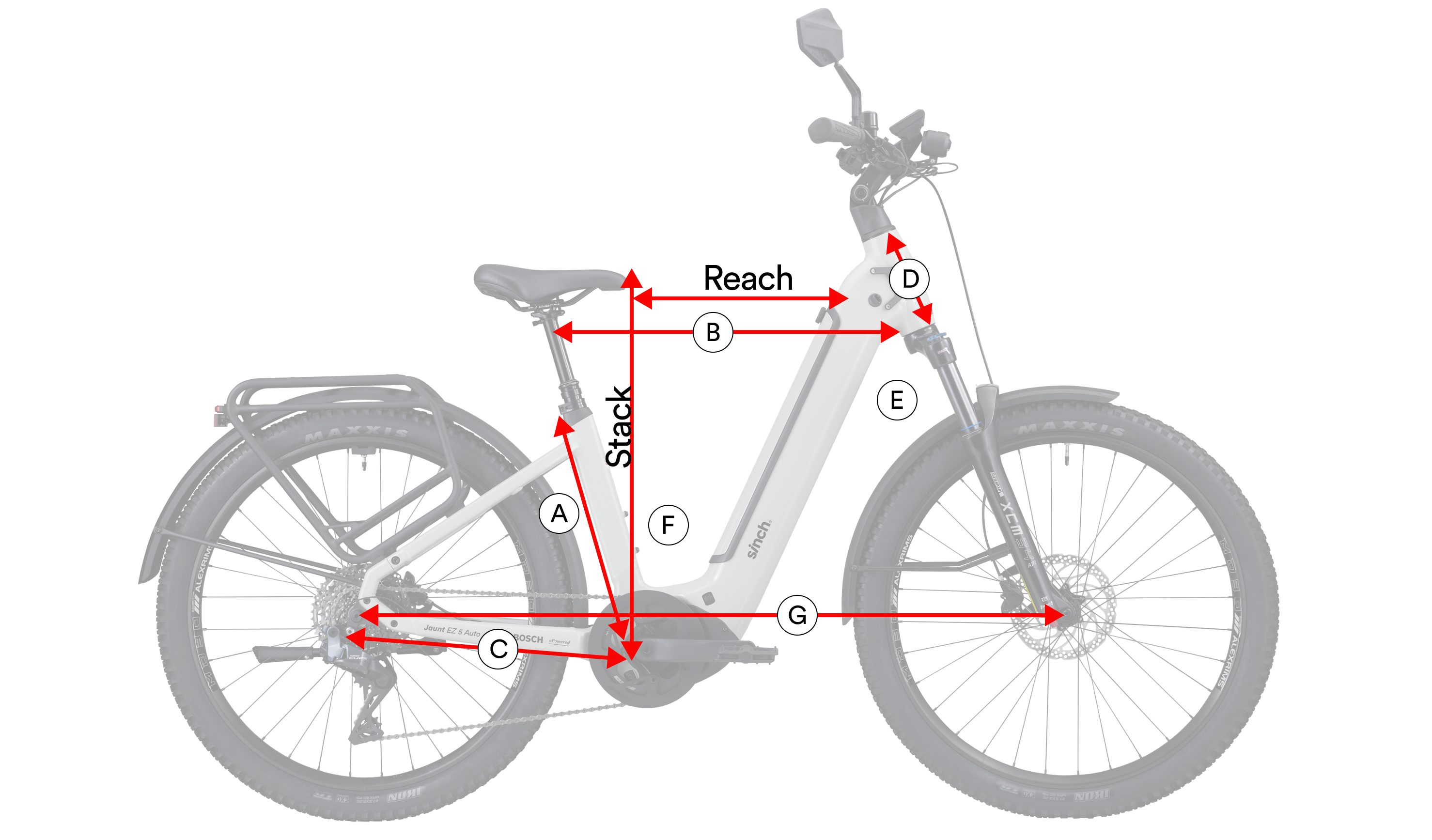

Geometry
S/M
M/L
XL
A - Seat Tube
430
480
530
B - Top Tube Horizontal
595
610
630
C - Chain Stay
482
482
482
D - Headtube Length
170
170
190
E - Head Angle
68.5
69
69
F - Seat Angle
74
74
74
G - Wheelbase
1164.5
1173.4
1195.3
Standover
425.9
424.1
424.1
Stack
680
682.5
701.2
Reach
400
414.3
428.9
Crank Length
165
165
165
Stem Length
75
90
Size
S/M
M/L
XL
Rider Height
152-170cm
168-182cm
178-196cm
