Mode AT 4 – Summit Stone

Adventure starts with the Mode AT 4, combining powerful Bosch performance with sporty handling and go-anywhere versatility. The Bosch Performance Line Sport Smart System (90Nm) delivers smooth assistance up to 45 km/h, while the integrated 600Wh PowerTube battery is PowerMore-ready, expandable to 850Wh with PowerMore 250. A lightweight magnesium air fork, suspension dropper seat post and integrated everyday essentials give you the comfort, control and confidence to explore further.

Download Brochure (PDF)

<h5>BATTERY</h5> Icon
BATTERY

Internal removable Bosch PowerTube 600Wh

<h5>POWER</h5> Icon
POWER

Bosch Performance Line Sport 90Nm, 45km/hr

<h5>RELIABILITY</h5> Icon
RELIABILITY

Hand selected world class components

$6,999.99
$6,999.99

Tax Inc.

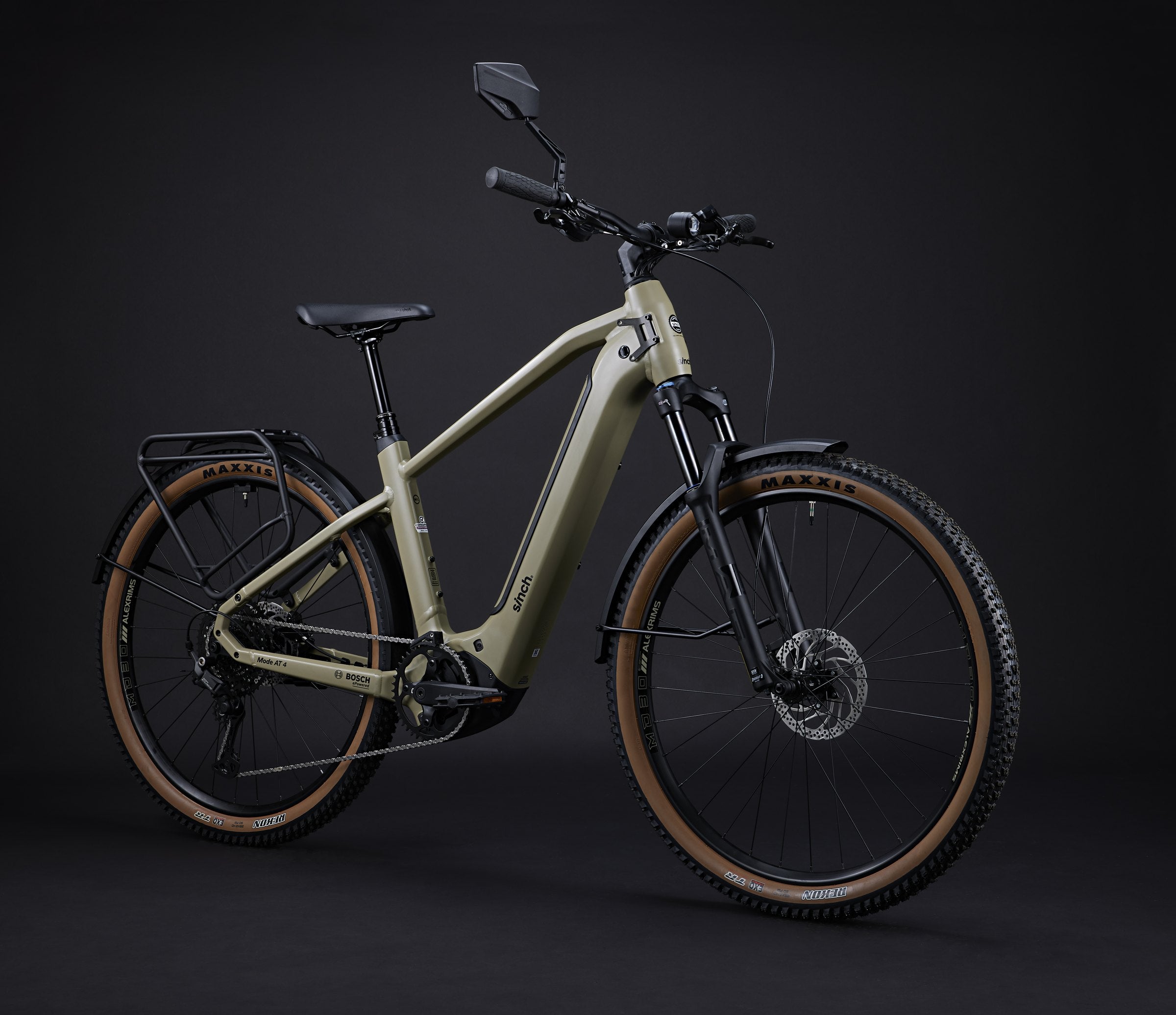

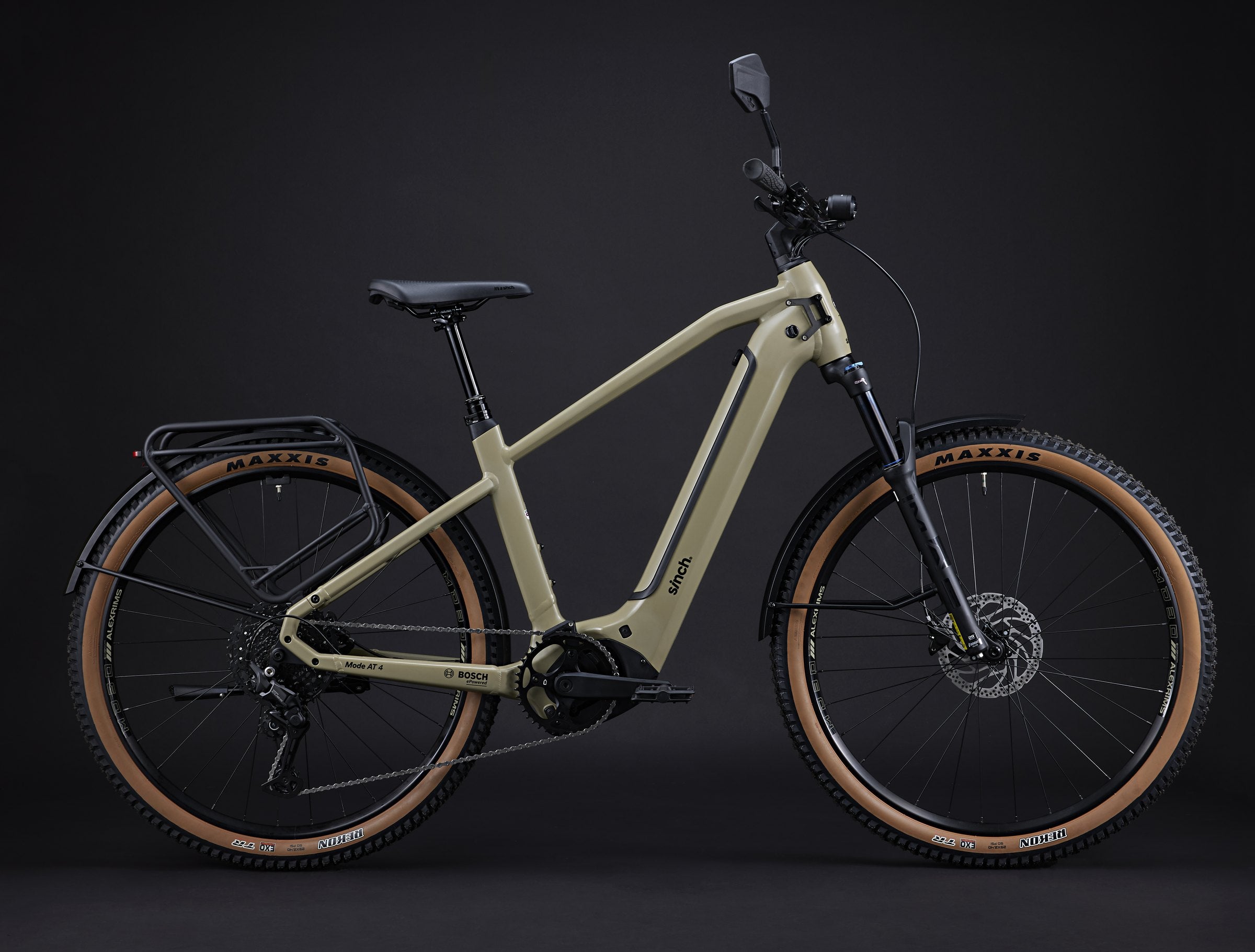

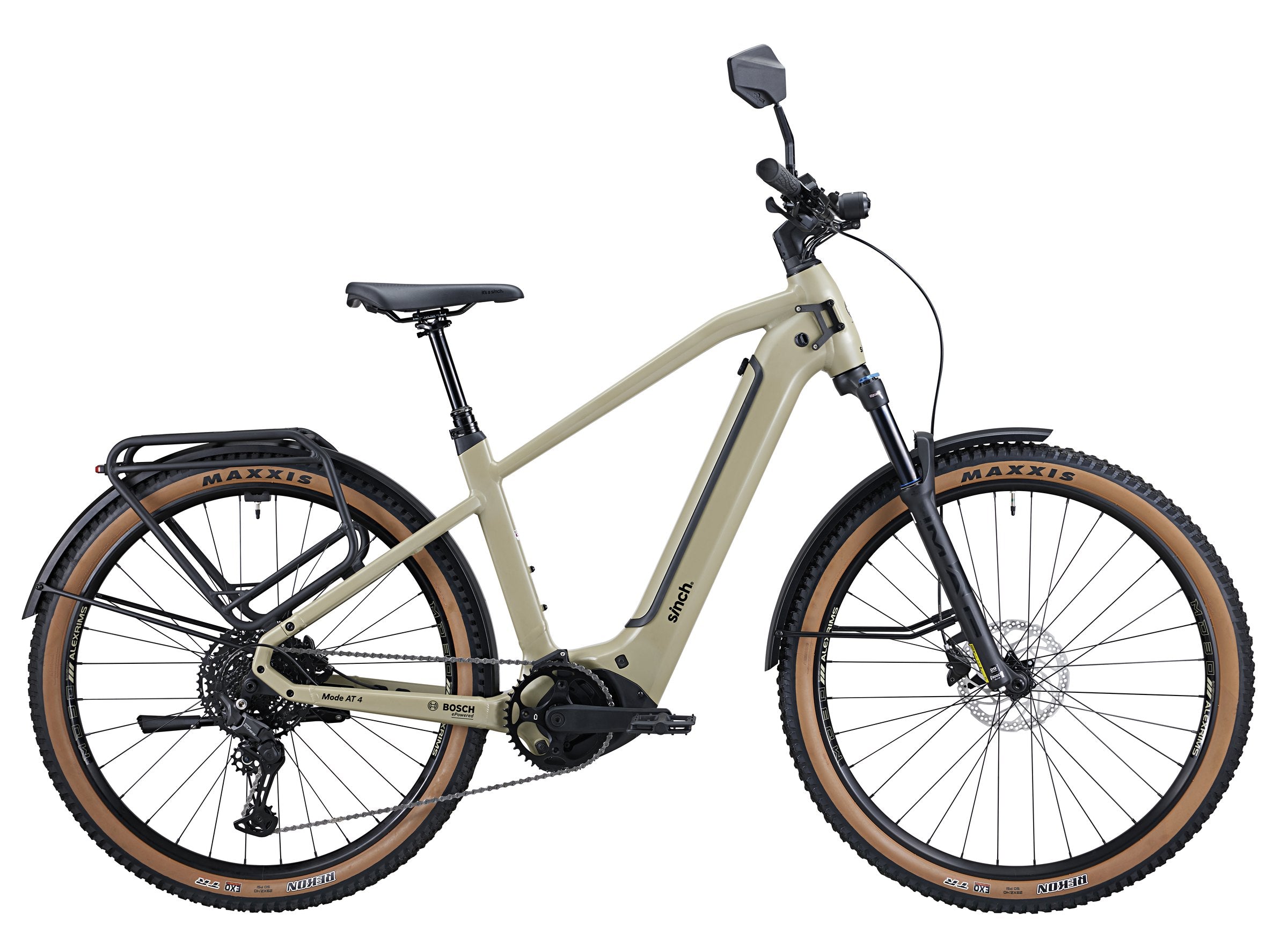

Sinch Mode AT 4 e-bike in Summit Stone, S/M with black-wall tyres

Mode AT 4 – Summit Stone

$6,999.99
Sinch Mode AT 4 e-bike in Summit Stone
Sinch Mode AT 4 e-bike in Summit Stone, S/M with black-wall tyres
Sinch Mode AT 4 e-bike in Summit Stone
Sinch Mode AT 4 e-bike in Summit Stone
Sinch Mode AT 4 e-bike in Summit Stone
Sinch Mode AT 4 e-bike in Summit Stone
Sinch Mode AT 4 e-bike in Summit Stone
Sinch Mode AT 4 e-bike in Summit Stone
Sinch Mode AT 4 e-bike in Summit Stone
Sinch Mode AT 4 e-bike in Summit Stone
Sinch Mode AT 4 e-bike in Summit Stone
Sinch Mode AT 4 e-bike in Summit Stone
Sinch Mode AT 4 e-bike in Summit Stone
Sinch Mode AT 4 e-bike in Summit Stone
Sinch Mode AT 4 e-bike in Summit Stone
Sinch Mode AT 4 e-bike in Summit Stone
Sinch Mode AT 4 e-bike in Summit Stone
Sinch Mode AT 4 e-bike in Summit Stone

Mode AT 4 – Summit Stone

$6,999.99
Colour: SUMMIT STONE
Size: S/M

    DEPENDABLE PERFORMANCE

    <h5>Battery</h5> Icon
    Battery

    Powered by the internal Bosch PowerTube 600Wh battery, expandable to 850Wh with the optional PowerMore 250 (sold separately).

    <h5>Powerful Pedal Assist</h5> Icon
    Powerful Pedal Assist

    Powerful Bosch Performance Line Sport Smart System 90Nm assisting you to 45km/hr.

    <h5>Data Centre</h5> Icon
    Data Centre

    Compact, connected, and easy to use, the Purion 200 gives you all your ride data needed during your ride.

    <h5>Dependable Drivetrain</h5> Icon

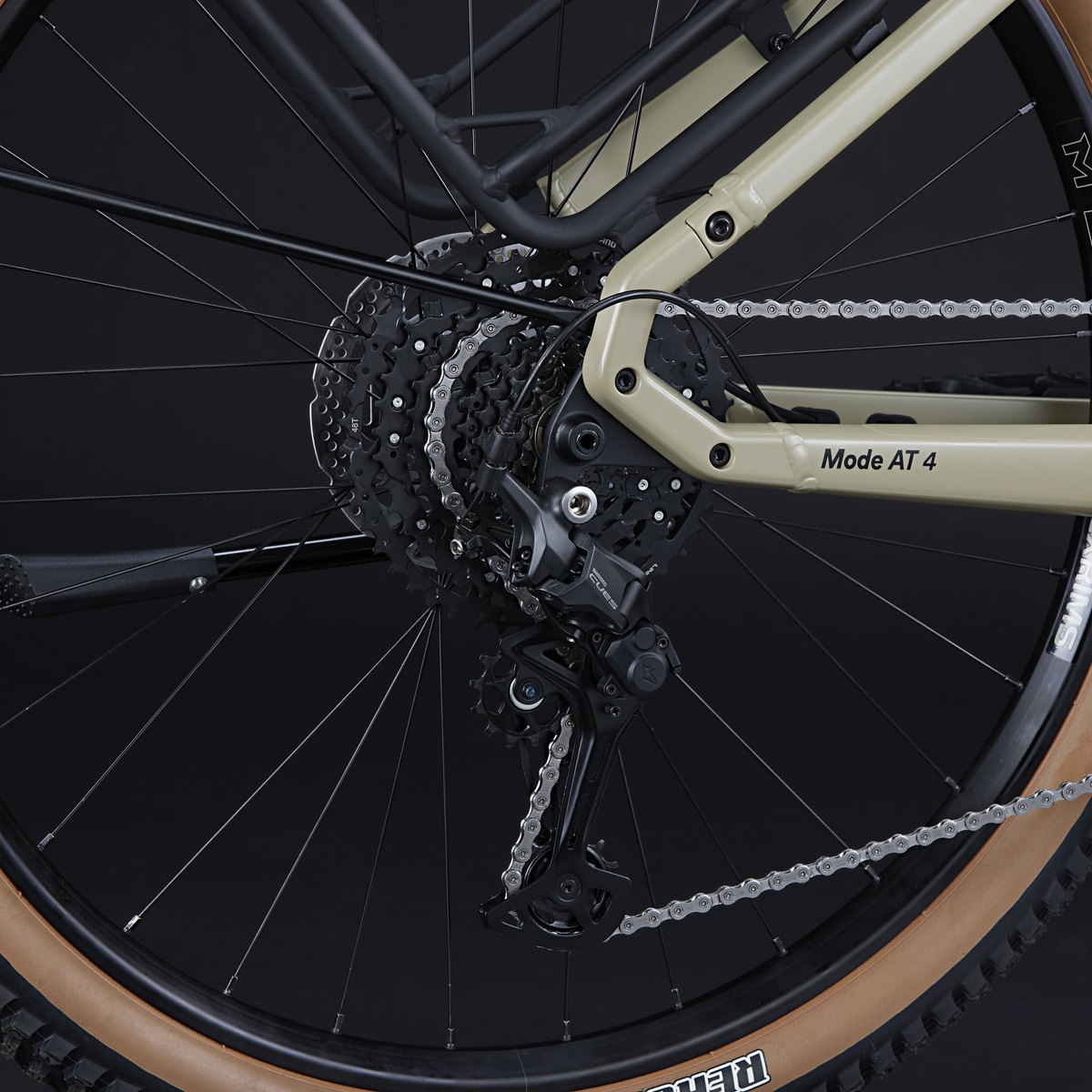

    Dependable Drivetrain

    Shimano Cues 10 speed LinkGlide components sets a new standard for smooth and reliable shifting.

    RELIABLE SAFETY

    <h5>Lighting Solutions</h5> Icon

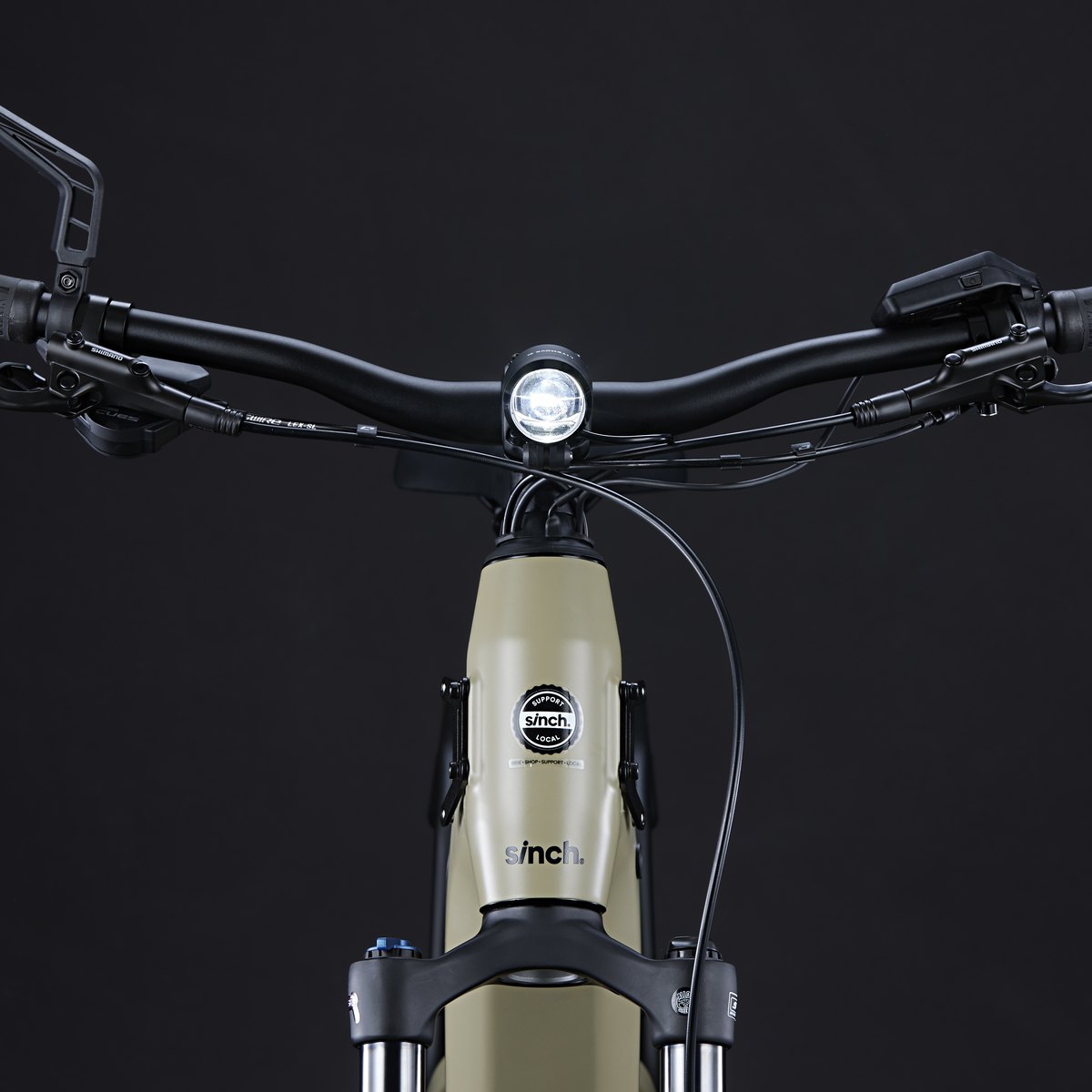

    Lighting Solutions

    Be seen and stay safe with built-in front and rear lighting solutions.

    <h5>Effective Brakes</h5> Icon
    Effective Brakes

    Shimano hydraulic-disc brakes ensure effective and timely stops.

    <h5>Safety Mirror</h5> Icon

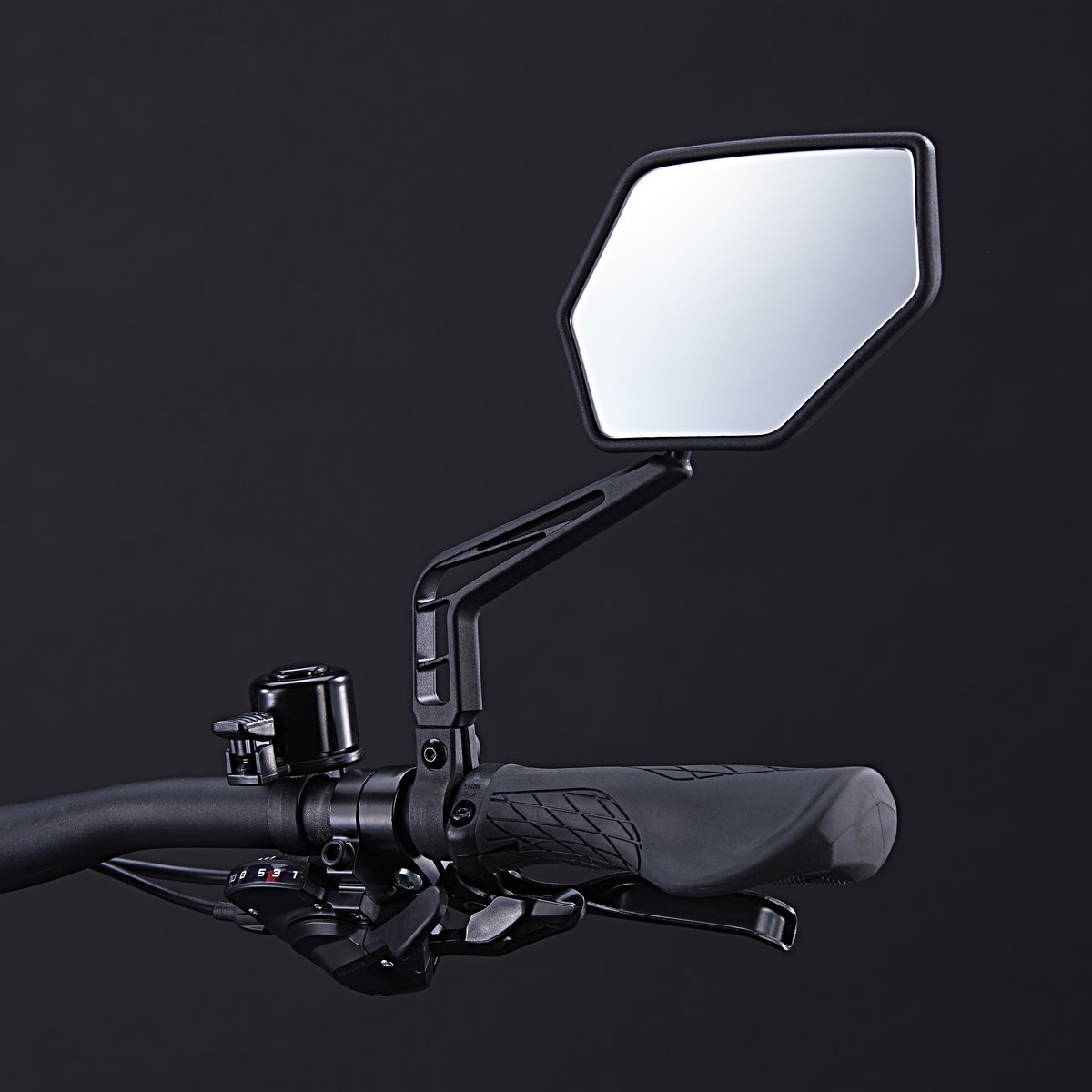

    Safety Mirror

    Ride smarter and safer with the integrated rearview mirror, designed to increase visibility and awareness of your environment.

    <h5>Proper Traction</h5> Icon
    Proper Traction

    Ride with confidence on reliable Maxxis tires and enjoy a smooth, safe journey with plush suspension.

    UNPARALLELED COMFORT

    <h5>Smooth Ride</h5> Icon
    Smooth Ride

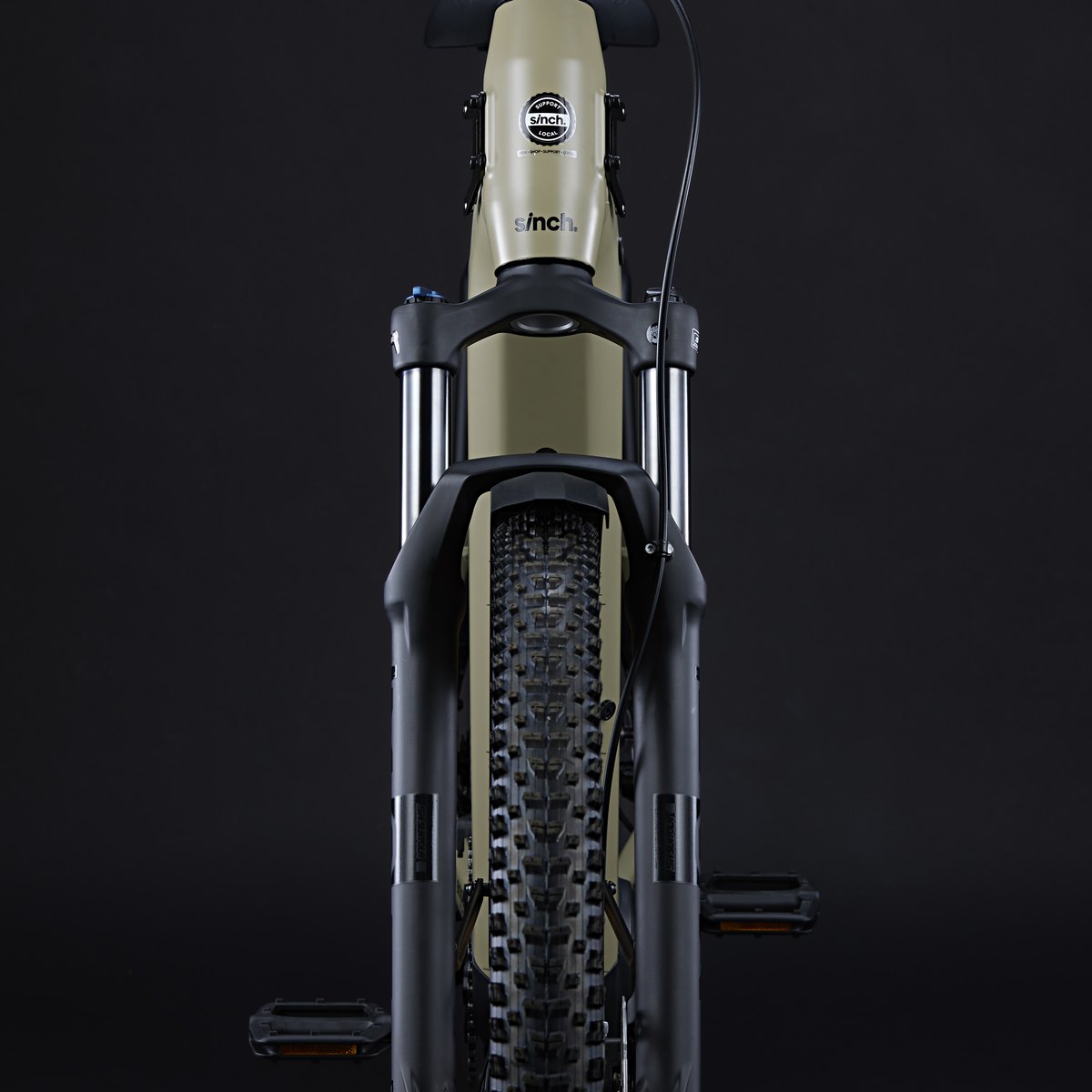

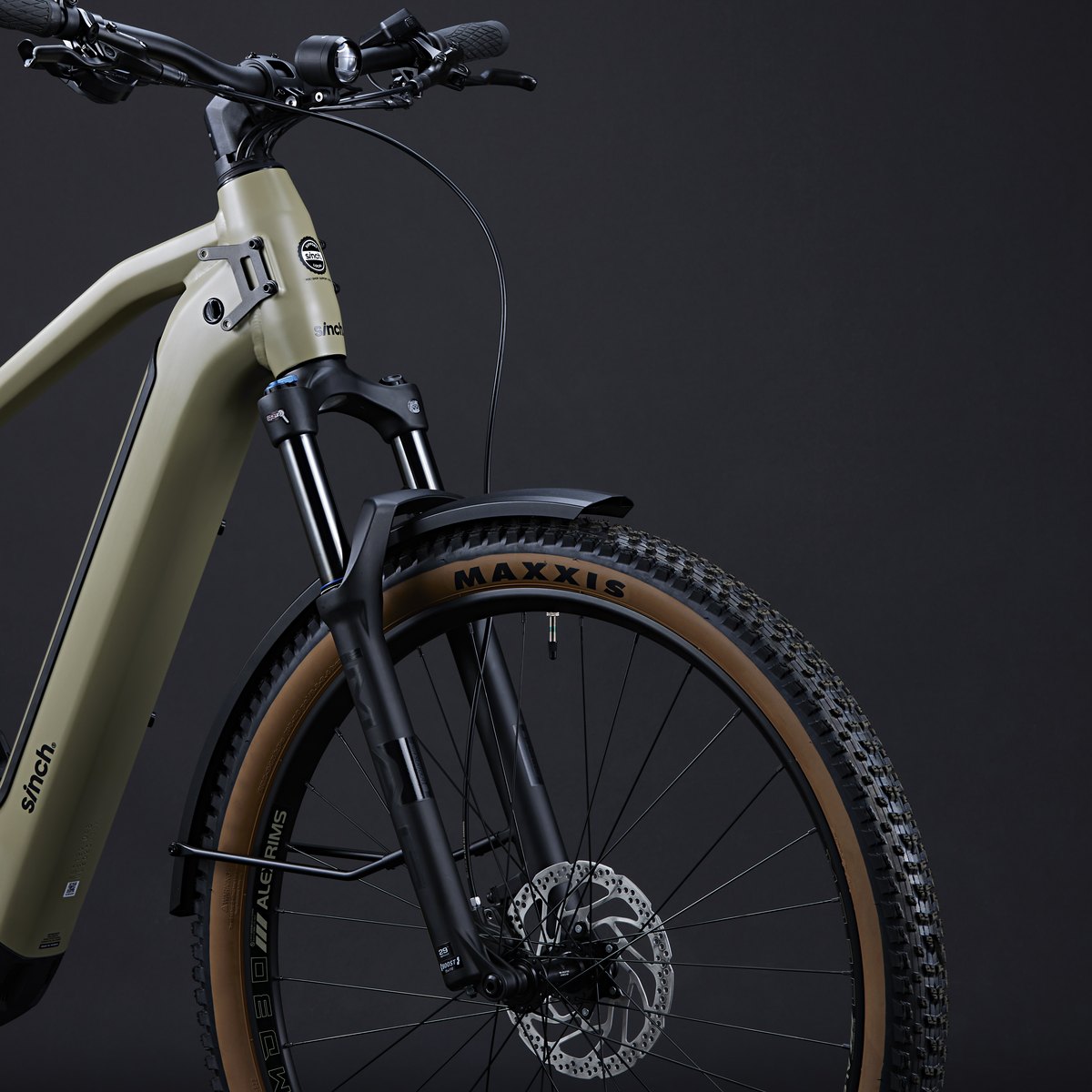

    100-120mm front air suspension travel is designed to make every ride comfortable.

    <h5>Equipped Features</h5> Icon
    Equipped Features

    Equipped with fully integrated powerful lighting solutions, alloy fenders and noise reduction kick stand.

    <h5>All-round Comfort</h5> Icon
    All-round Comfort

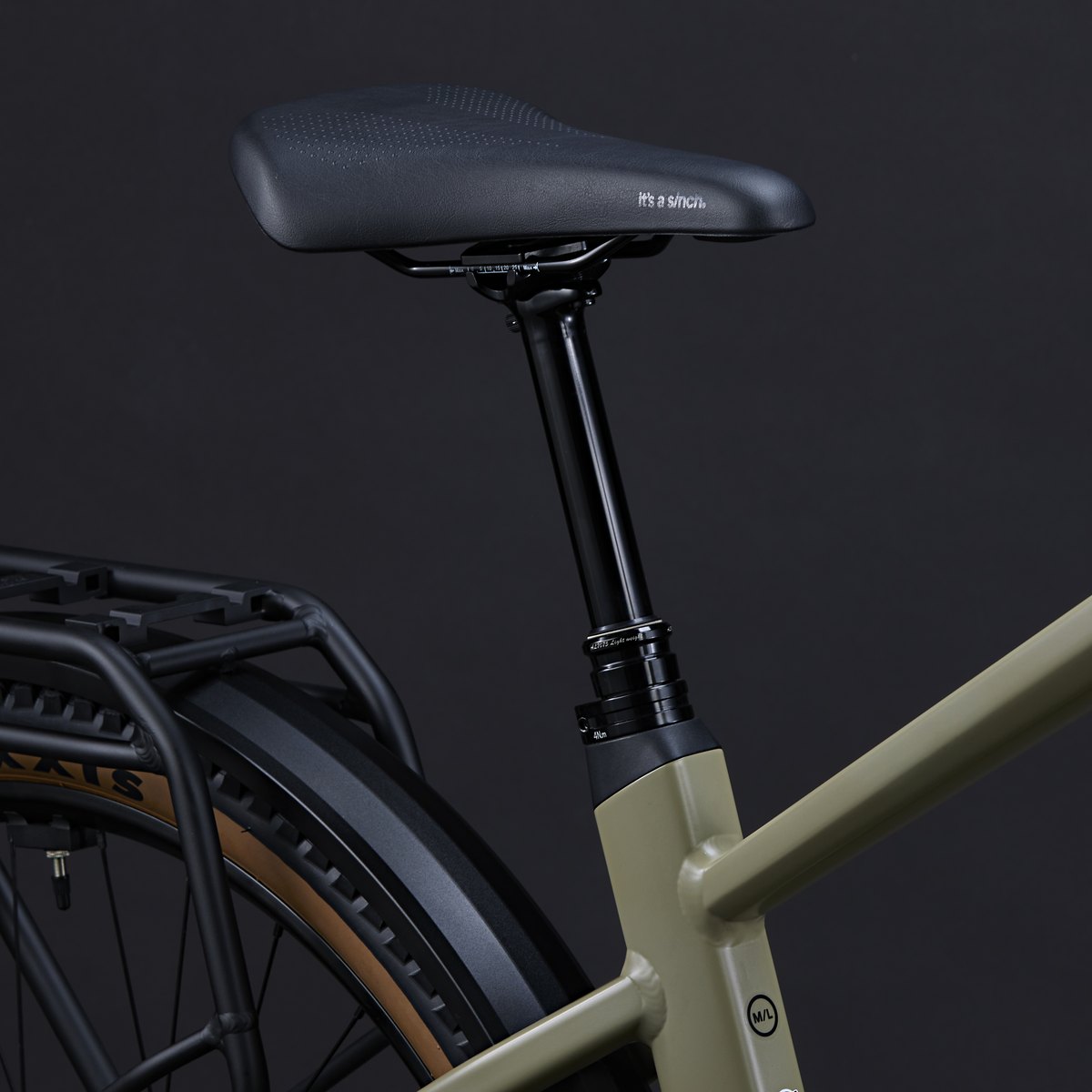

    Every touch point including the suspension dropper seat post, saddle, handlebars and grips is designed with your comfort in mind.

    <h5>Fingertip Control</h5> Icon

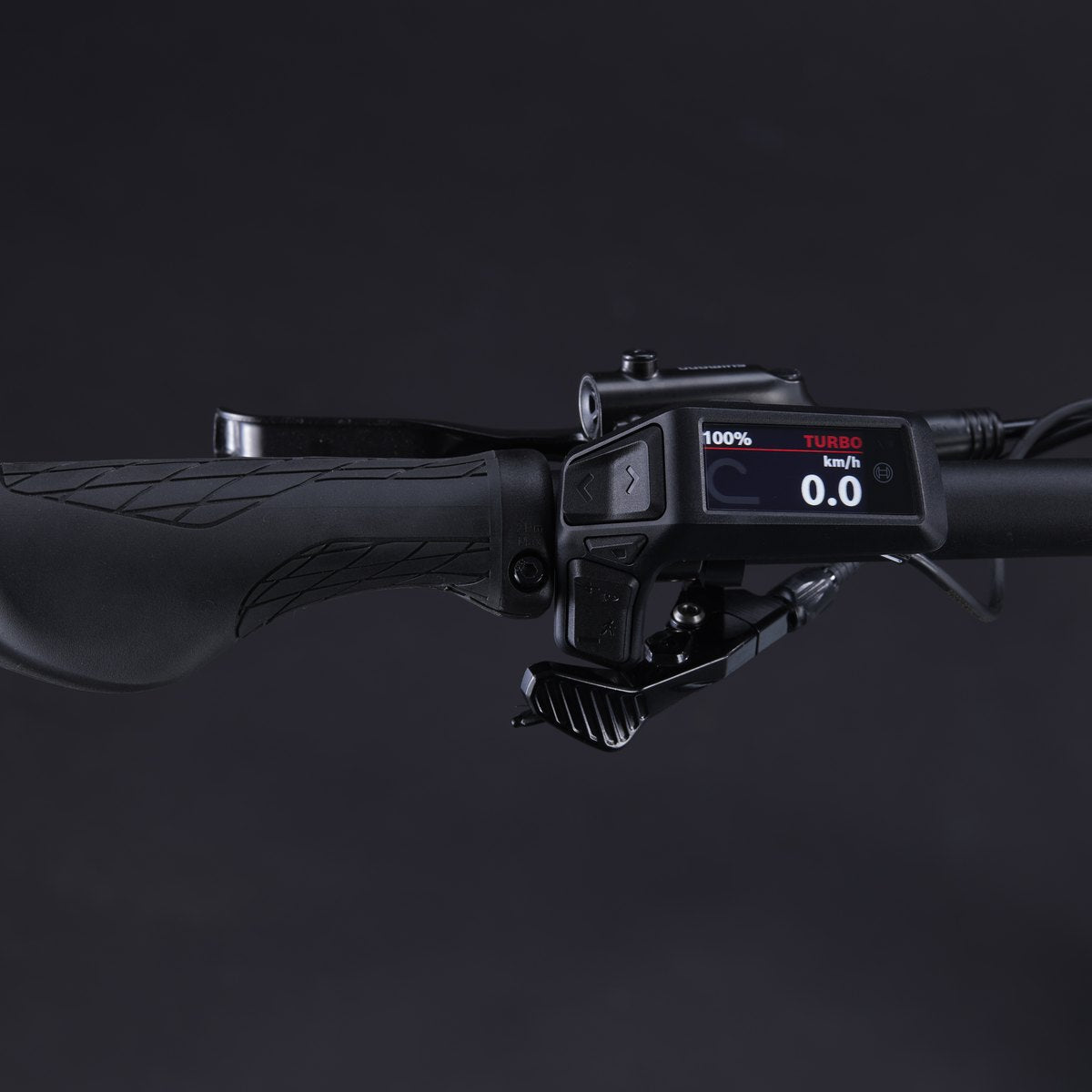

    Fingertip Control

    The Bosch Purion 200 offers a clean, compact setup with a colour display and thumb-reach controls. Fully connected through the Bosch smart system, it keeps your ride data clear and your handlebars uncluttered.

    CHARGING YOUR BIKE

    <h5>Charging on Bike</h5> Icon
    Charging on Bike

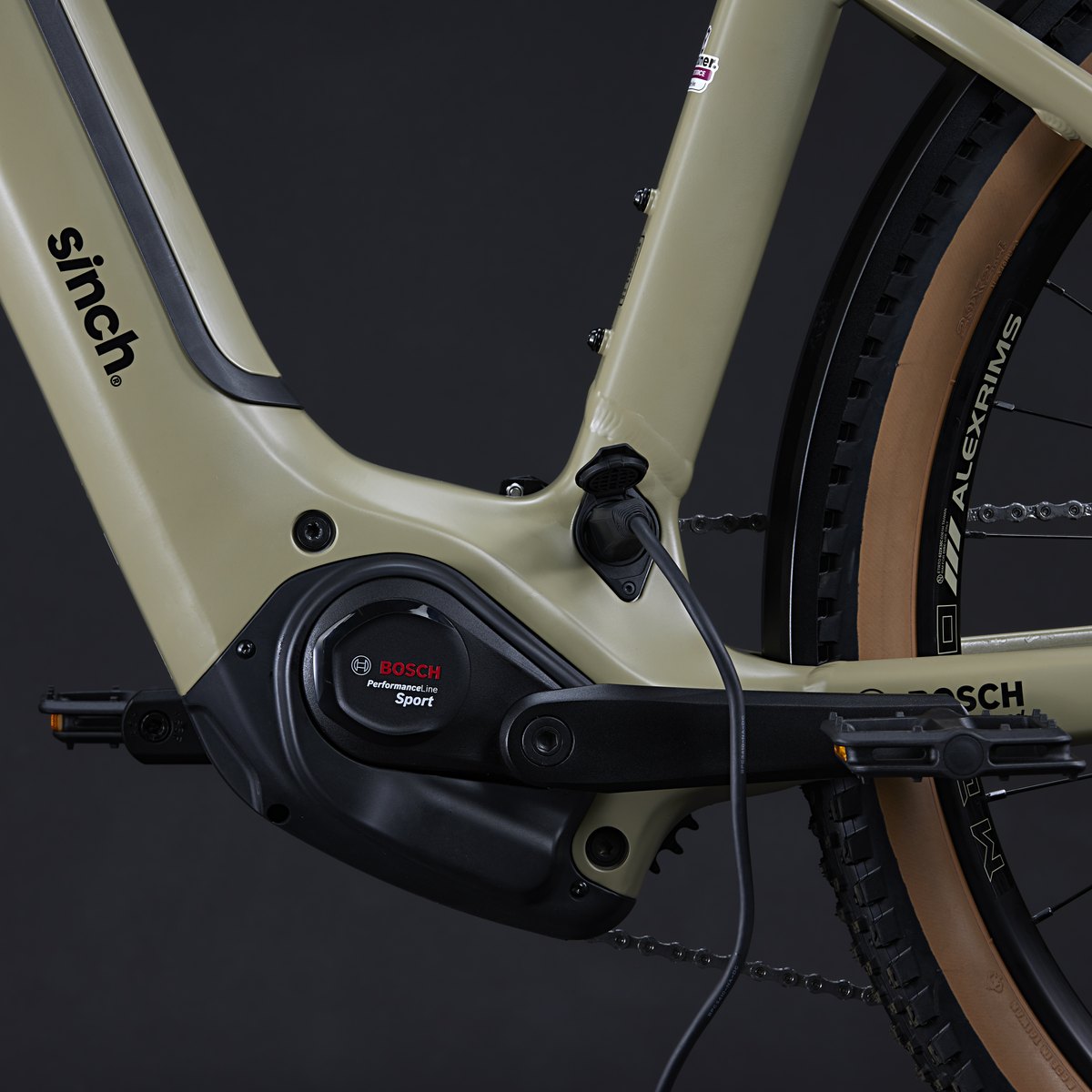

    Use the satellite charging port to charge your Bosch battery on the bike.

    <h5>Battery Cover</h5> Icon
    Battery Cover

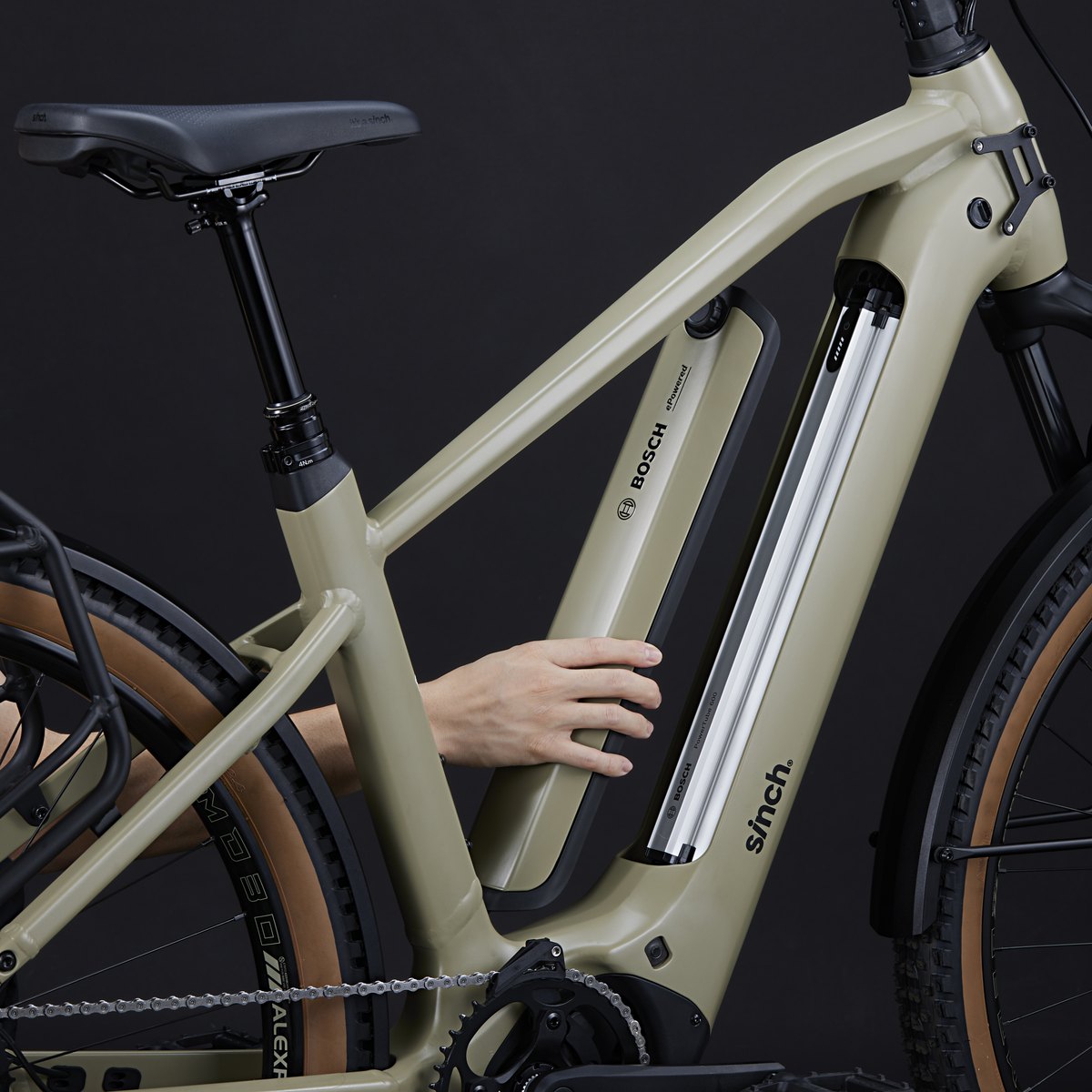

    Independent battery cover allows you to remove your internal battery and keeps your bike sealed while the battery is removed.

    <h5>Charging off Bike</h5> Icon
    Charging off Bike

    Internal removable Bosch battery can be charged off your bike.

    <h5>Sinch Carry Case</h5> Icon
    Sinch Carry Case

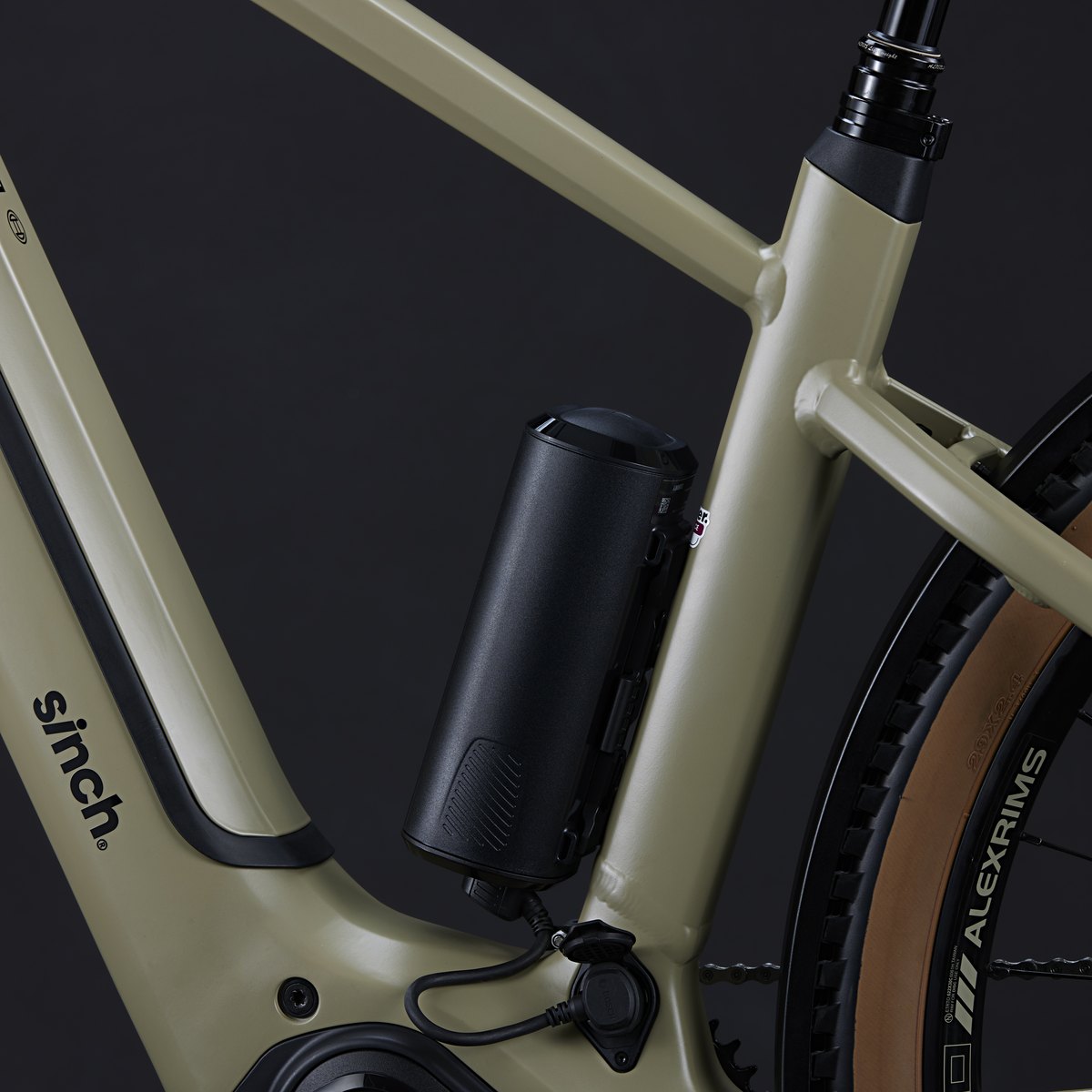

    Keep your charger, battery lock key and bike manuals together in your Sinch carry case.

    Specification

    Frameset

    • Frame

      6061 E Bike Specific Aluminum Frame with Fully integrated Down Tube battery and internal cables

    • Front Suspension

      SR Suntour MAG32 AIR, 110x15mm boost thru axle, S/M=100, M/L,XL=120mm travel with lockout

    • Rear Suspension

      N/A

    Motor

    • Drive Unit

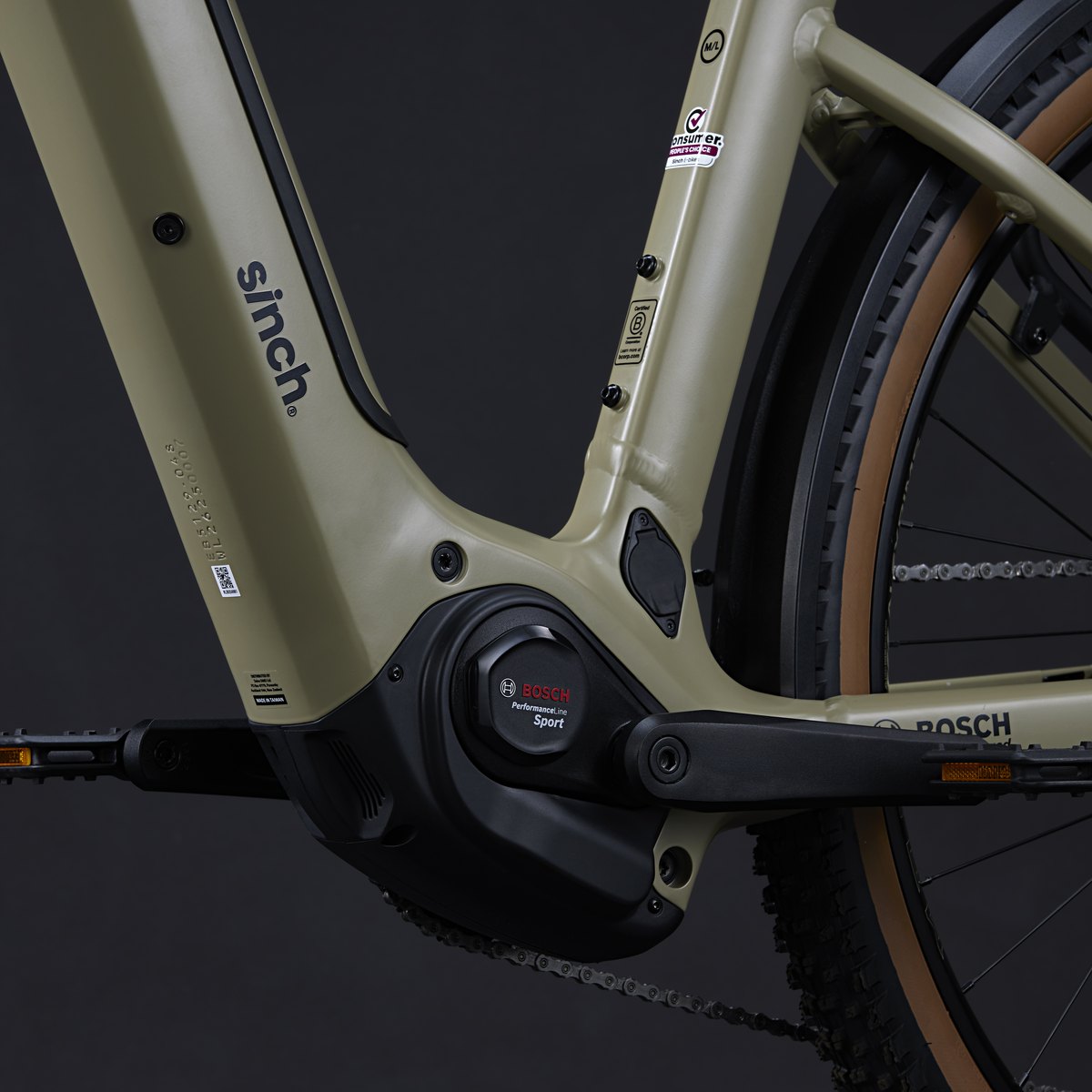

      Bosch Performance Line Sport BDU347Y 250watt, 90Nm, Max Power 700W, Max support 600%, 45km/hr with walk assist mode

    • Battery

      Bosch PowerTube, 600Wh

    • Display

      Bosch Purion 200

    • Controller Switch

      Bosch Purion 200

    Wheels

    • Hubs

      Shimano TC500 Boost 110x15mm Thru axle 32H front, TC500 Boost 148x12mm Thru axle 32H rear

    • Rims

      Alex MD30 Double Wall 27.5" & 29" 32H F/V

    • Tyres

      Maxxis Rekon S/M=27.5" Black Side-wall, M/L,XL=29x2.4" Tan Side-wall Foldable, 60tpi, TR/EXO puncture protection

    Drivetrain

    • Shifter

      Shimano Cues SL-U6001 10 Speed

    • Derailleur

      Shimano Cues RD-U6000 Shadow 10 Speed

    • Crankset

      Samox Alloy 165mm with 40T Chainring with Chain device

    • Cassette

      Shimano Cassette LG300 LinkGlide 11-48T 10 Speed

    • Chain

      Shimano CN-LG500 Link Glide

    • Pedals

      Sinch Nylon platform

    Components

    • Brakeset

      Shimano MT200 Hydraulic disc, 180mm front/160mm rear rotors

    • Saddle

      Sinch Sport Comfort 174mm Gel Dual density

    • Seat post

      Suspension AIR Adjust Dropper, S/M=100, M/L=120, XL=150mm travel, Internal routing, 31.6mm

    • Bar

      Sinch Alloy sport 30mm rise, 9° sweep, S/M=720, M/L=740, XL=760mm

    • Stem

      Fastback 20 Alloy Ahead, 31.8mm, 20-degree

    • Headset

      Integrated with internal cables

    • Grips

      Sinch Sport Gel Lock-on dual density

    Accessories

    • Lights

      Litemove SE 70 Lux Front, Spanninga Pimento Large Rear with sensor Brakelight function

    • Accessories

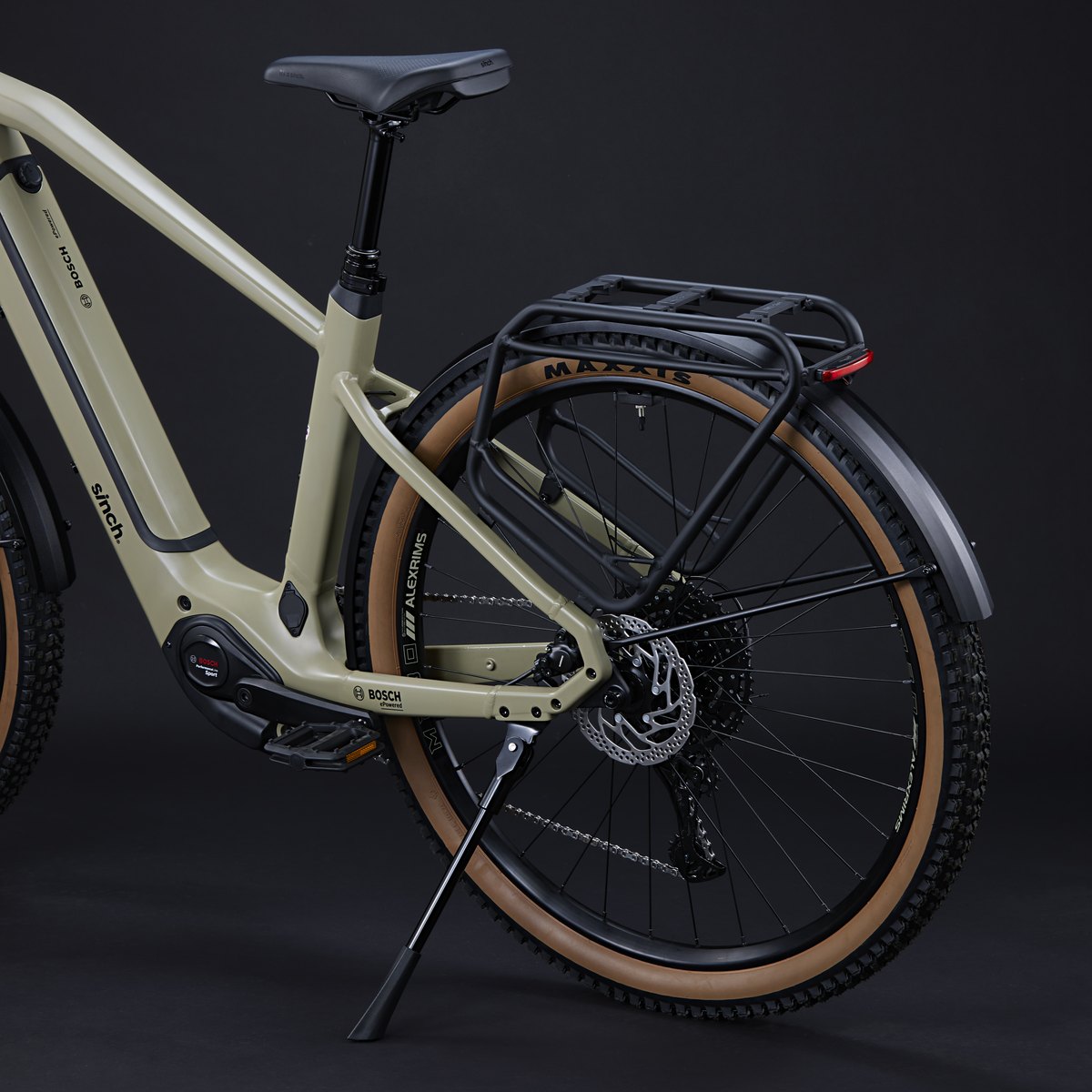

      Alloy Mudguards, MIK HD Rear Carrier 27kg load capacity, Noise reduction Kickstand, Range extender PowerMore 250 compatible, Multi-angle adjustable Mirror, Sinch accessory case

    • Sizes

      S/M=27.5", M/L, XL=29"

    • Warranty

      Lifetime on Hardtail Frames and 5 years on Rear suspension Frame Sinch Bikes - 2 years motor and battery. Other parts follow manufacturer warranty.


      Product specifications may change without notice. Non-binding information.

    Geometry
    S/M
    M/L
    XL
    Wheel Size

    27.5"

    29"

    29"

    A - Seat Tube

    430

    480

    530

    B - Top Tube Horizontal

    595

    610

    630

    C - Chain Stay

    482

    482

    482

    D - Headtube Length

    170

    170

    190

    E - Head Angle

    68.5

    69

    69

    F - Seat Angle

    74

    74

    74

    G - Wheelbase

    1164.5

    1173.4

    1195.3

    Standover

    778.6

    814

    842.2

    Stack

    680

    682.5

    701.2

    Reach

    400

    414.3

    428.9

    Crank Length

    165

    165

    165

    Stem Length

    50

    50

    70

    Size
    S/M
    M/L
    XL

    Rider Height

    152-170cm

    168-182cm

    178-196cm
