MY22 MODE 26 MATTE GREY/BLACK

  • Sale
  • Regular price $3,999.99
Tax included.

Size: 26 INCH.

Colour: MATTE GREY/BLACK.

Model Year: MY22.


Set yourself free

The Mode 26 is the perfect bike for young ones or the shorter adult to get out and explore longer making it more enjoyable for everyone. Quality and reliable components throughout will give you confidence to get out and explore. A powerful intuitive pedal assist Shimano drive unit will assist your riding speed up to 32km/hr and allows you to travel up to 150km on one full charge depending on rider assist mode and terrain. Catch me if you can!!

What’s there to Love

  • Shimano E5000 mid-drive motor will assist your riding speed up to 32 km/hr
  • Shimano STEPs E8014 418Wh battery extends your riding range up to 150km depending on rider assist mode, terrain and weather conditions
  • SR Suntour XCM DS 26” Suspension fork with 80mm of travel and hydraulic lockout
  • Shimano Alivio 9 Speed components with Shimano hydraulic disc brakes
  • Kenda 26 x 2.35” tyres
Bike Specifications

Frameset

Frame 6061 E Bike Specific Aluminum Frame
Front suspension SR Suntour XCM DS 26, 80mm travel, with preload adjustment and hydraulic lockout

Motor

Drive Unit Shimano STEPS DU-E5000 250watt 40Nm, 32km/hr
Battery Shimano Steps BT-E8014, 36V 11.6Ah 418Wh
Display Shimano Steps SC-E7000 Cycle Computer.

Wheels

Hubs Shimano TX-505 32H
Rims Alex DP27 Double Wall 26" 32H
Tyres Kenda Slant Six 26x2.35"

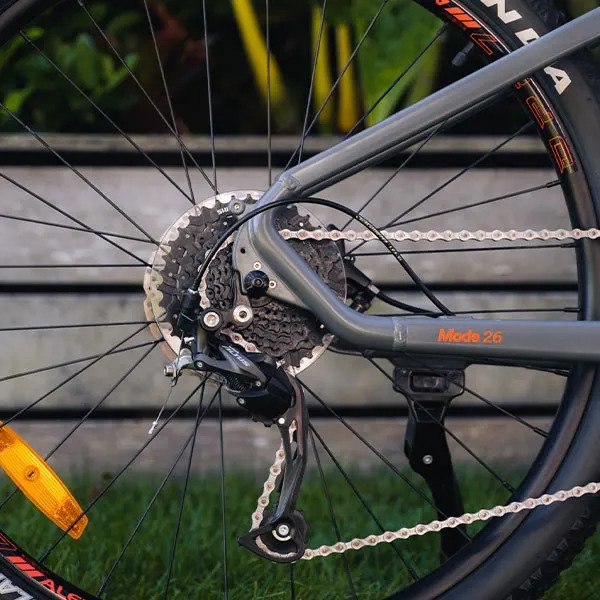

Drivetrain

Shifter Shimano Alivio SL-M3100 9 Speed
Derailleur Shimano Alivio RD-M3100 9 Speed
Crankset Shimano FC-E5010 with 38T Chainring and double Chainguard
Cassette Shimano Cassette HG200 11-36T 9 Speed
Chain KMC E9 Sport
Pedals Sinch Nylon platform

Components

Brakeset Shimano MT200 Hydraulic disc, 180mm front/160mm rear rotors
Saddle Sinch Sports 145mm Gel
Seat Post Sinch Alloy Micro Adjust, 31.6mm
Bar Sinch Alloy Riser, 15mm rise, 6° sweep, 640mm
Stem Sinch Alloy 31.8mm, 7 degree.
Grips Sinch Sport Gel Lock-on dual density

Accessories

Lights  N/A
Accessories Kickstand

Sizes

Weight

26"

22kg

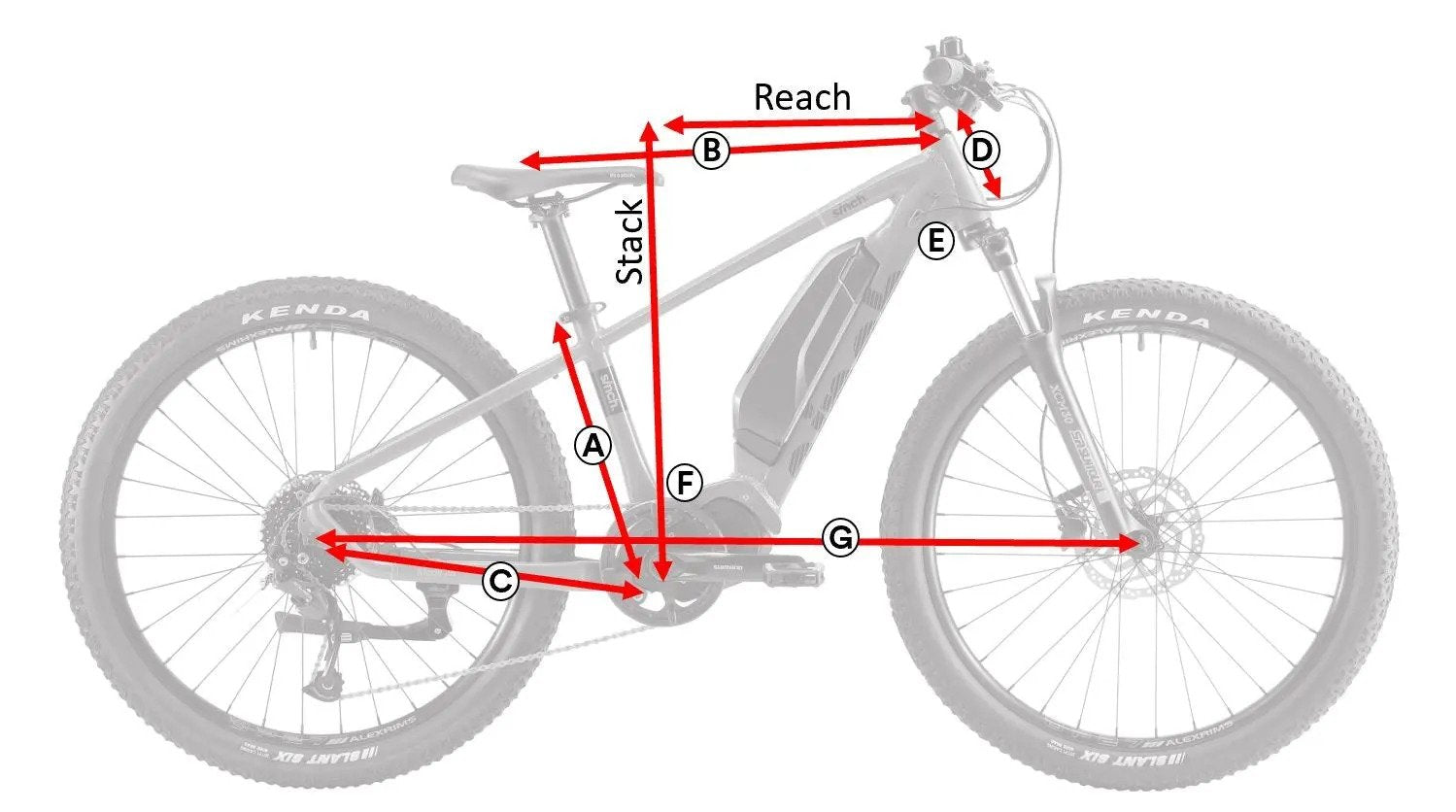

Geometry

Geometry

26"

A - Seat Tube 350
B - Top Tube Horizontal 540
C - Chain Stay 460
D - Headtube Length 120
E - Head Angle 68
F - Seat Angle 73
G - Wheelbase 1079.2
Stack 548.9
Reach 372.2
Crank Length 165
Stem Length 50





 Size Guide
26"
Rider Height 140-160cm
