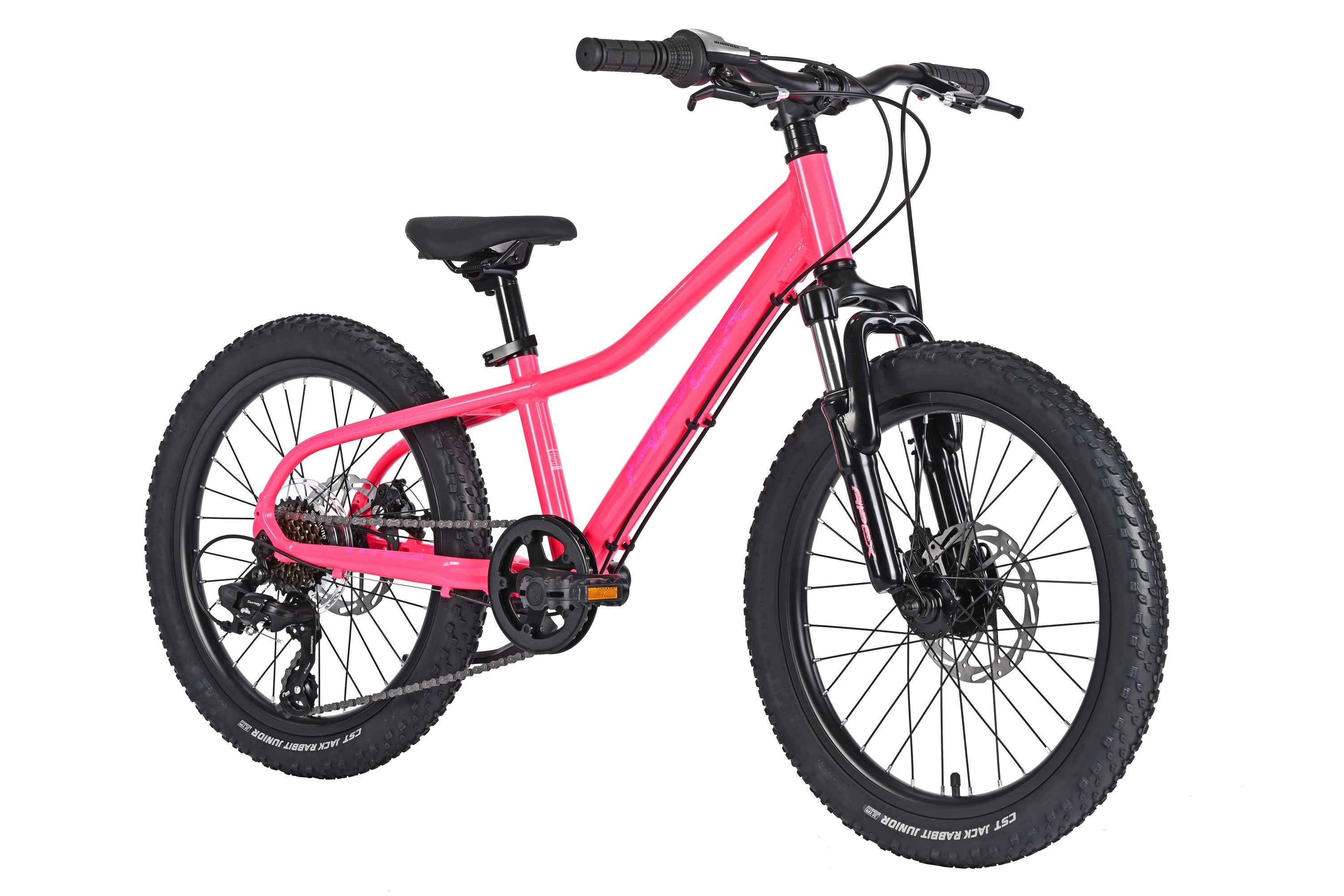

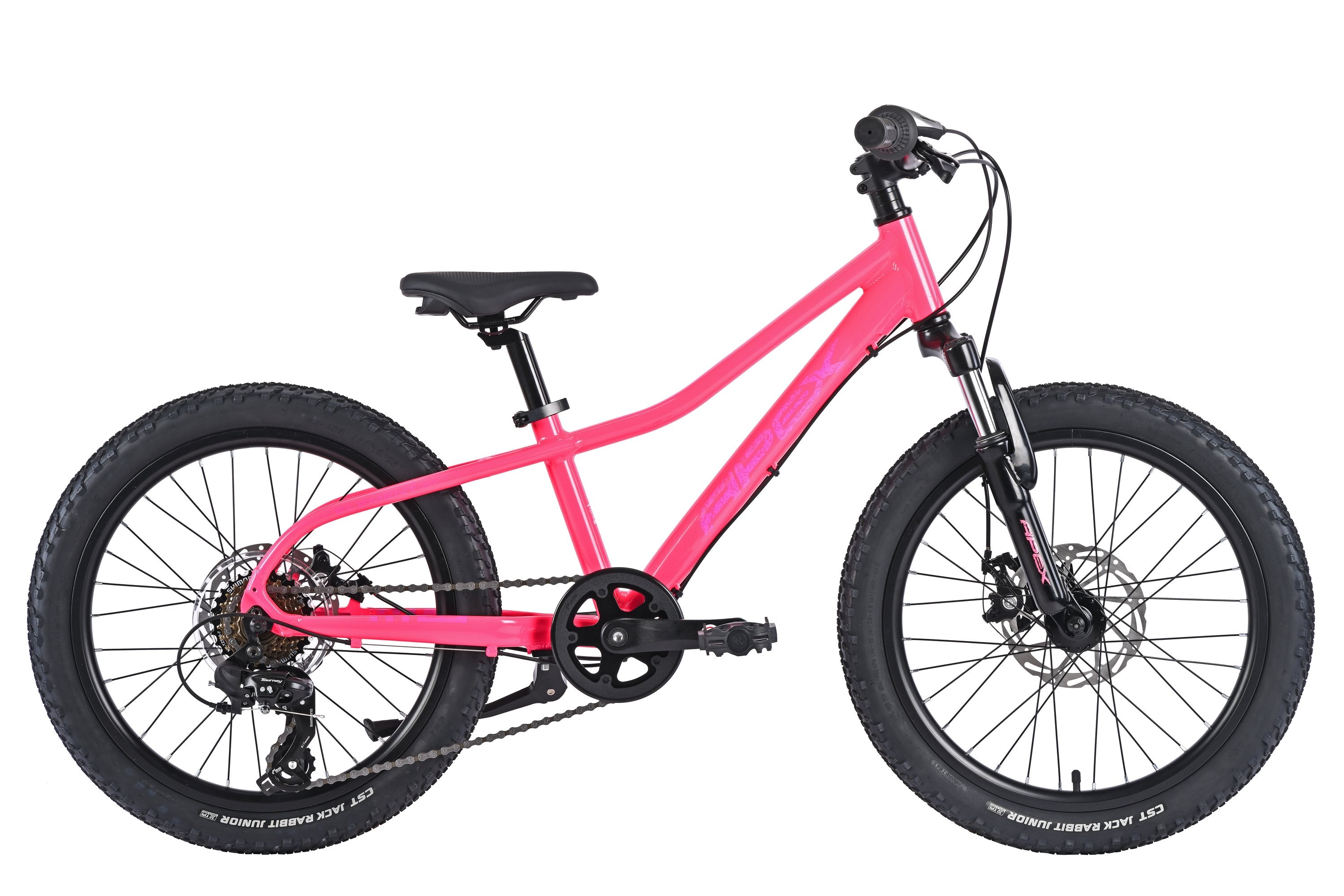

Apex Element 20” Disc – Glow Pink
Apex Element 20” Disc – Glow Pink

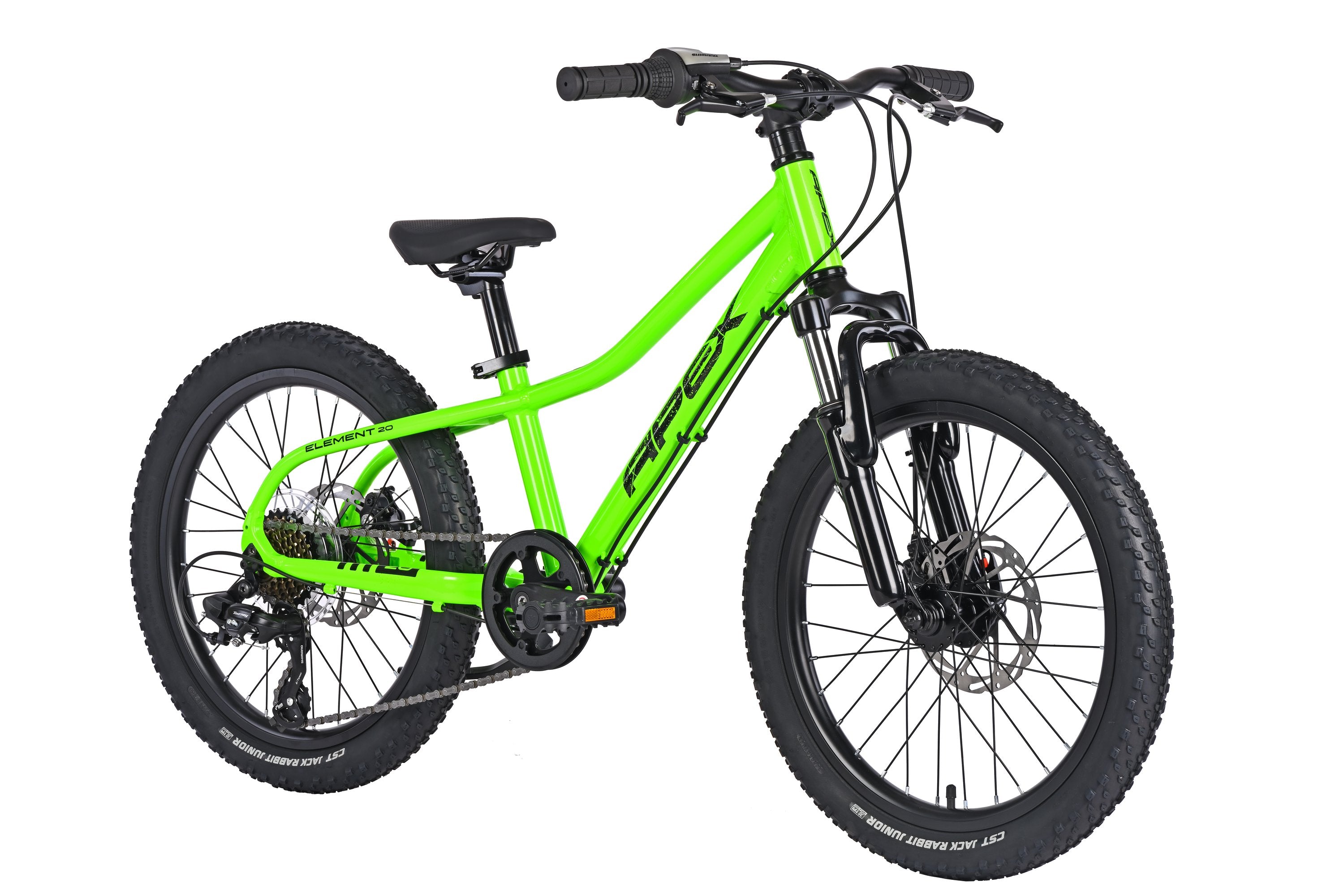

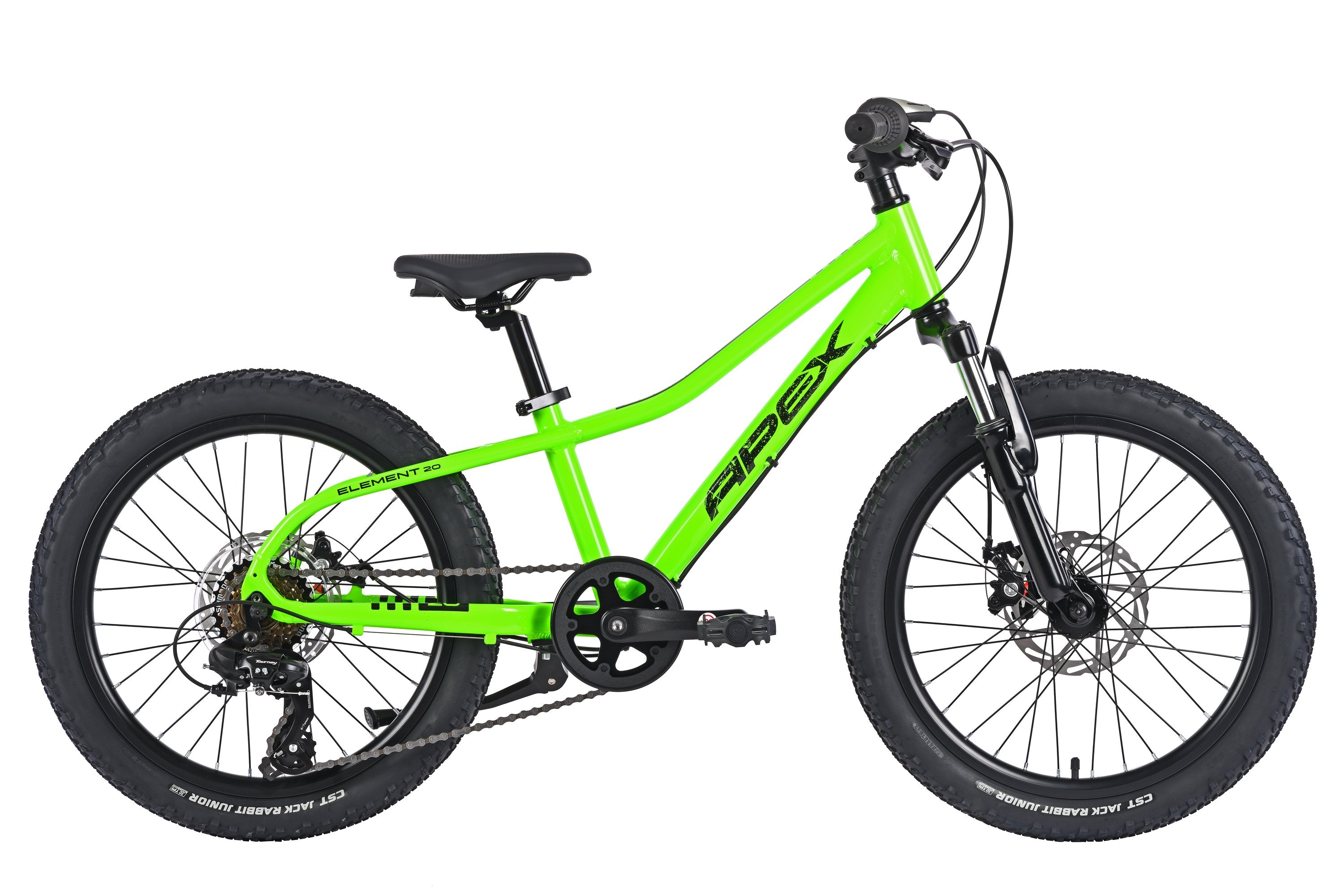

Apex Element 20” Disc – Volt Lime
Apex Element 20” Disc – Volt Lime

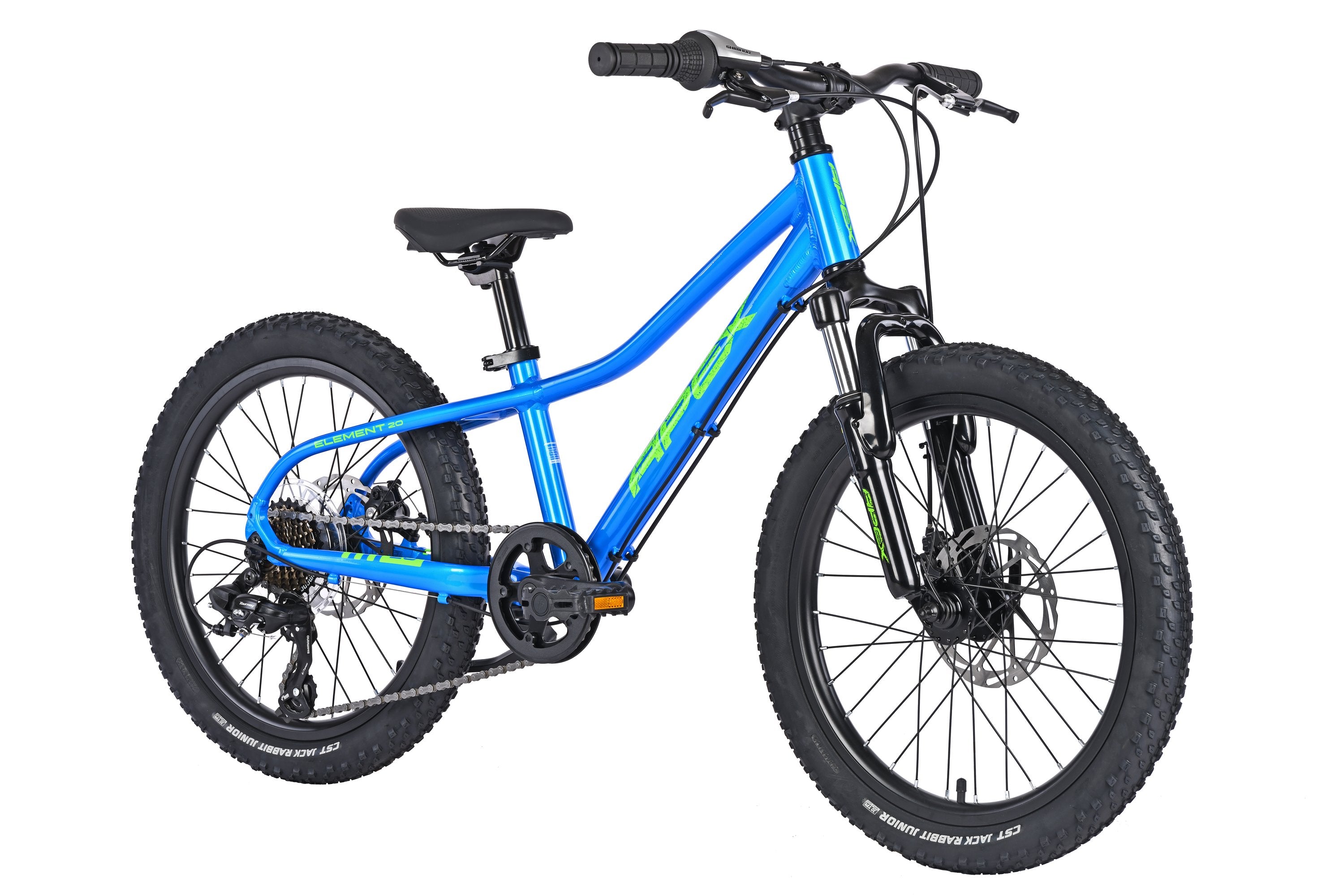

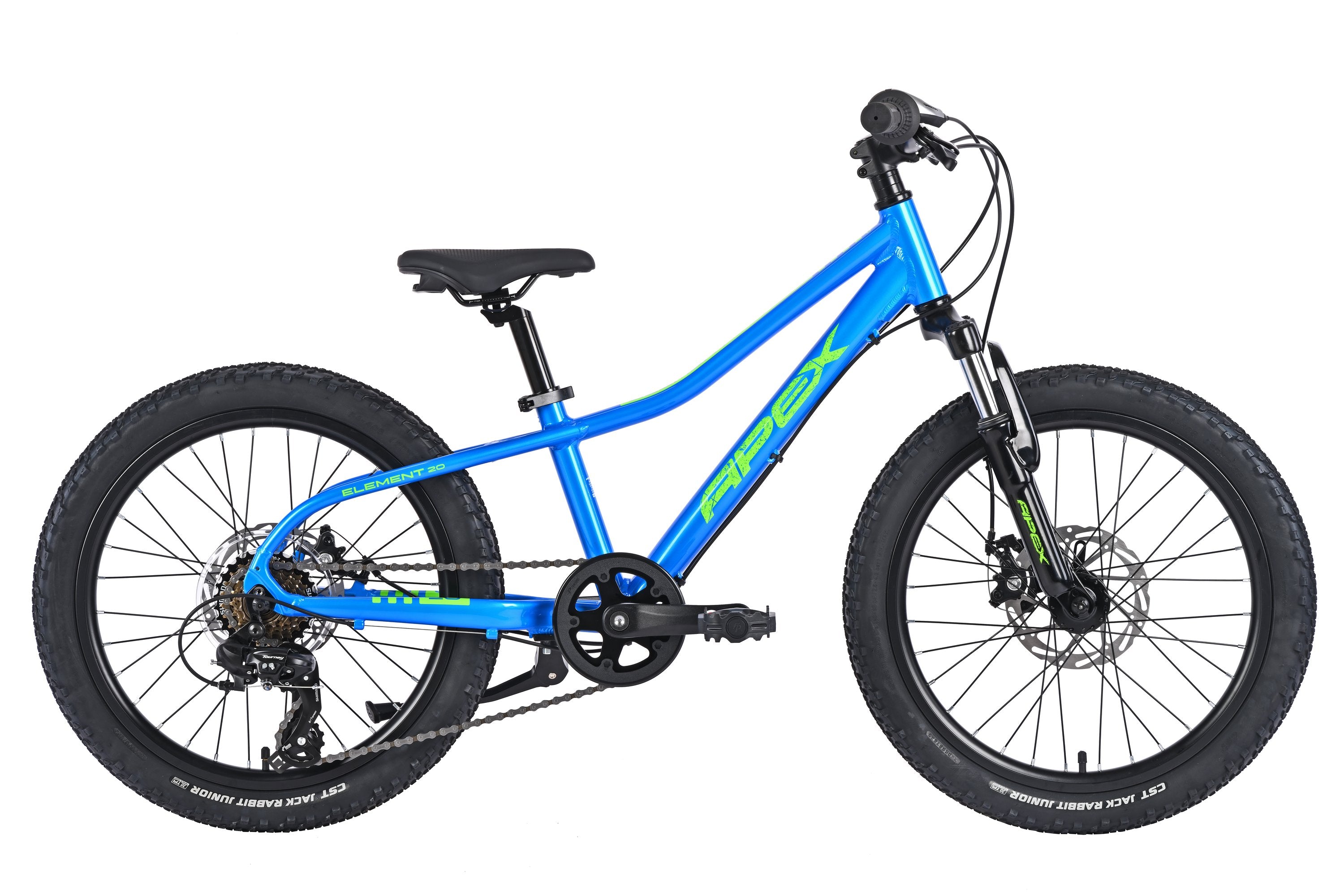

Apex Element 20” Disc – Pulse Blue
Apex Element 20” Disc – Pulse Blue
See The Bike

Apex Element 20" Disc

The Element 20 Disc is built for everyday adventure, with a lightweight, low stand-over alloy frame for easy access and confident handling. Front suspension helps smooth out bumps, while simple Shimano gearing and Tektro mechanical disc brakes deliver reliable performance and control.

Download Brochure (PDF)

$629.99
$629.99

Tax Inc.
Subtotal: $629.99
Colour: Glow Pink
Size: One Size
Apex Element 20” Disc – Glow Pink

Apex Element 20" Disc

$629.99
Apex Element 20” Disc – Glow Pink
Apex Element 20” Disc – Glow Pink
Apex Element 20” Disc – Volt Lime
Apex Element 20” Disc – Volt Lime
Apex Element 20” Disc – Pulse Blue
Apex Element 20” Disc – Pulse Blue

Apex Element 20" Disc

$629.99
Colour: Glow Pink
Size: One Size

    Specification

    Frameset

    • Frame

      6061 20" Lightweight Alloy with low Standover and replaceable dropout

    • Fork

      Suspension HL CH-386E 20" with 30mm travel

    Wheels

    • Hubs

      Lightweight Steel 32H front and rear

    • Spokes

      Stainless Steel Black

    • Rims

      Alloy 32H Double Wall S/V

    • Tyres

      CST MTB 20 x 2.125"

    Drivetrain

    • Shifter

      Shimano Revo SL-RV400-7R 7 Speed

    • Rear Derailleur

      Shimano RD-TY300, Tourney 7 Speed

    • Crankset

      Alloy 3-Piece 127mm with 32T steel chain ring & double chain guard

    • Cassette

      Shimano MF-TZ500-7 14-28T 7 Speed

    • Chain

      KMC Z7

    • Pedals

      Resin youth platform with ball bearings

    Components

    • Brakeset

      Tektro MD-280 Mechanical disc, 160mm rotors

    • Brake Levers

      Alloy Short reach

    • Saddle

      Apex Junior Design 140mm with handle

    • Seat Post

      Alloy 27.2mm x 250mm with Alloy QR seat clamp

    • Bar

      Lightweight Alloy 31.8mm, 25mm rise, 8 degree sweep, 600mm

    • Stem

      Lightweight Alloy ahead, 45mm, with Alloy cap

    • Headset

      1 1/8" Ahead

    • Grips

      Apex MTB soft Kraton

    Accessories

    • Accessories

      Alloy Kickstand

    • Sizes

      20"

    Geometry
    Element 20" Disc
    A - Seat Tube

    260

    B - Top Tube Horizontal

    454.3

    C - Chain Stay

    385

    D - Headtube Length

    110

    E - Head Angle

    69

    F - Seat Angle

    71

    G - Wheelbase

    886.5

    Standover

    521

    Stack

    448.1

    Reach

    300

    Crank Length

    127

    Stem Length

    45

    Size Guide
    6-10 years

    Height

    115-135cm
