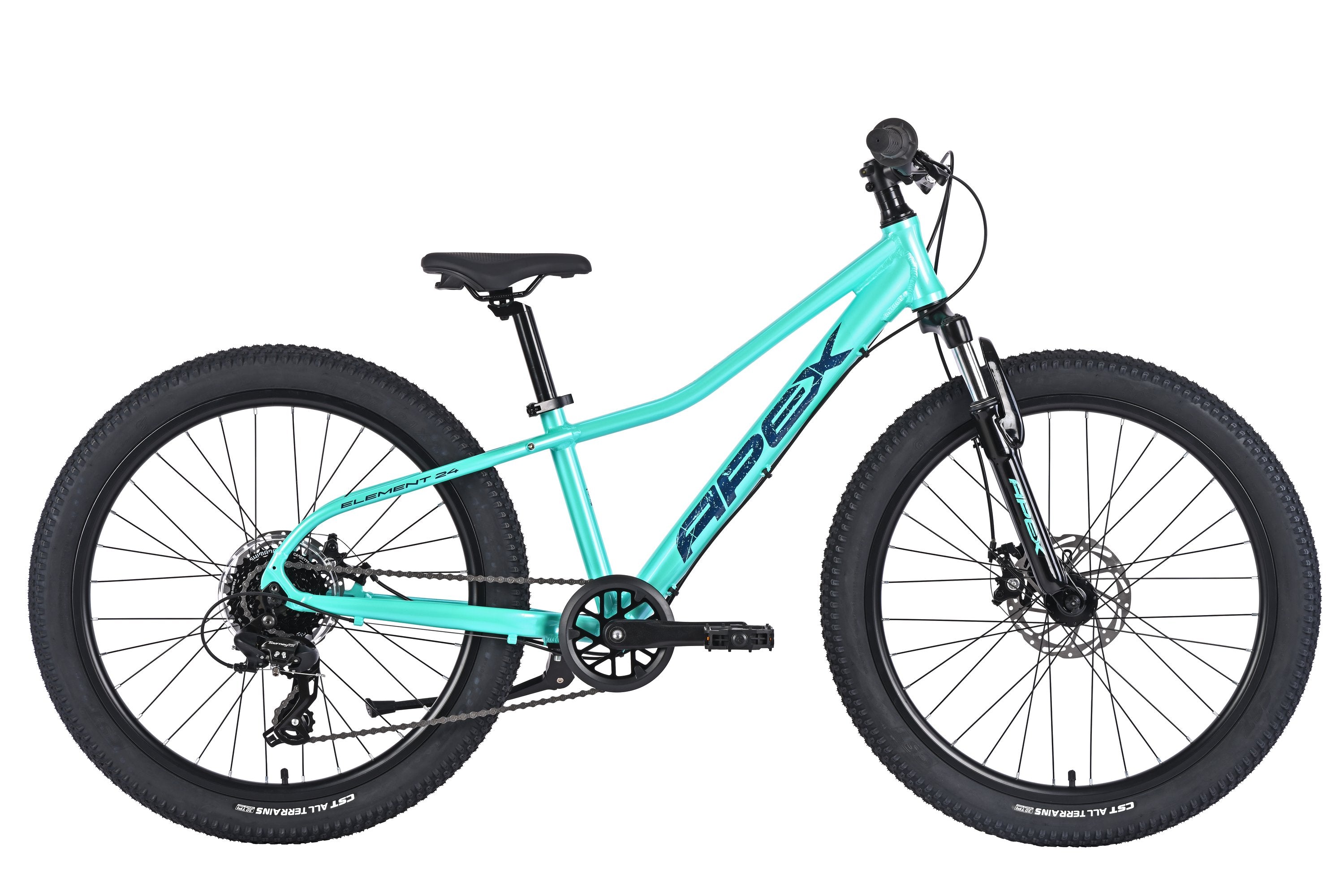

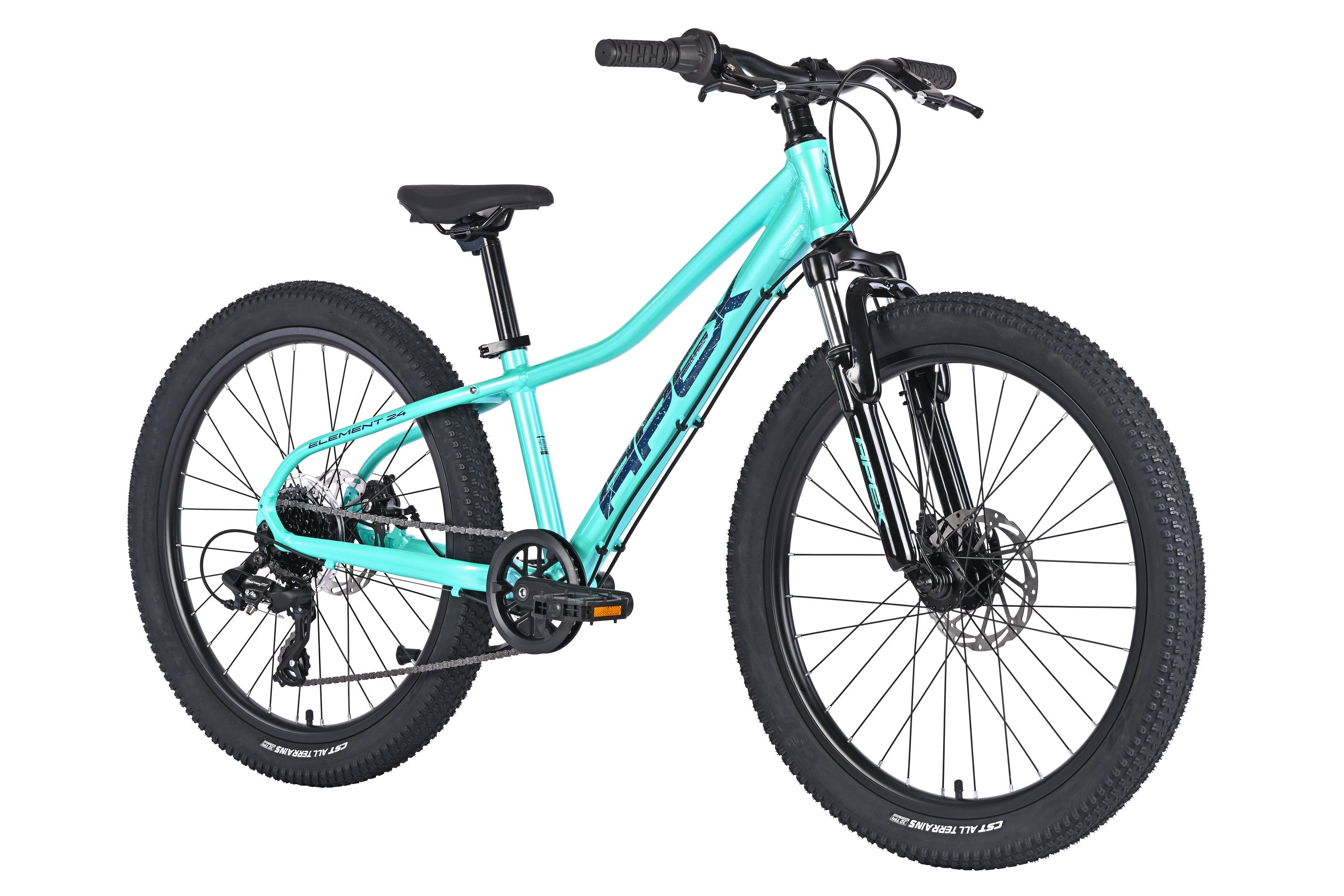

Apex Element 24” Disc – Coastal Teal
Apex Element 24” Disc – Coastal Teal

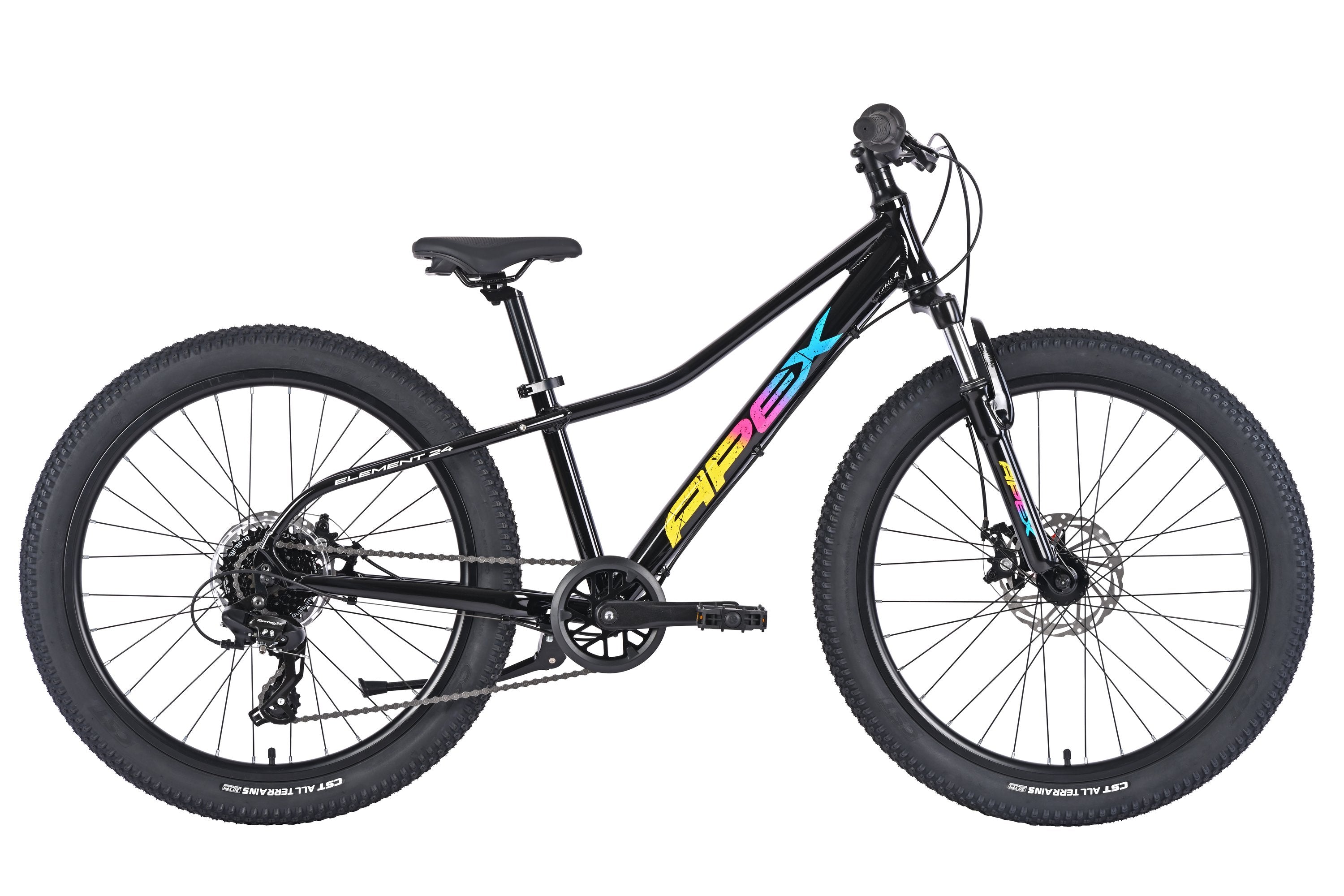

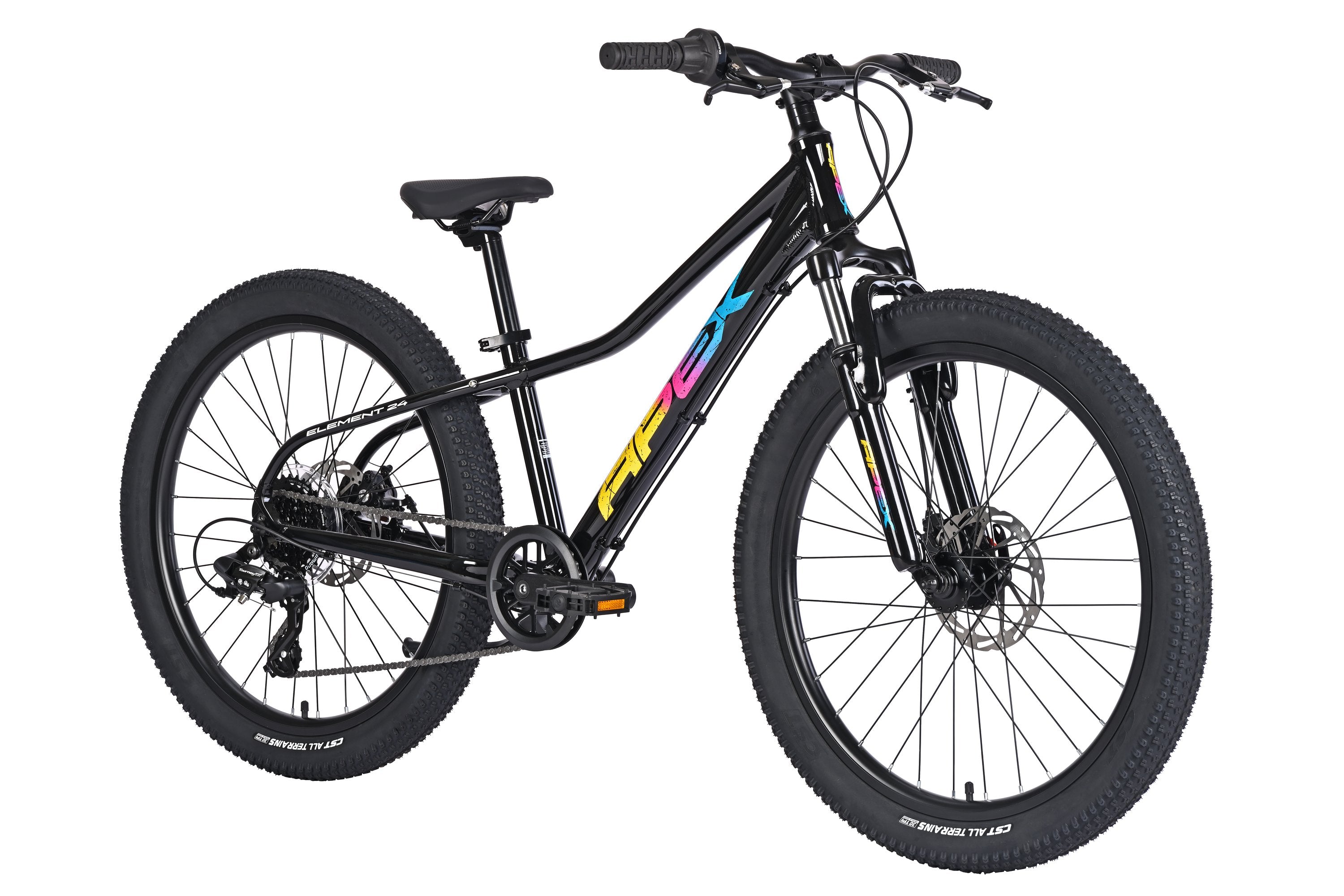

Apex Element 24” Disc – Shadow Black
Apex Element 24” Disc – Shadow Black

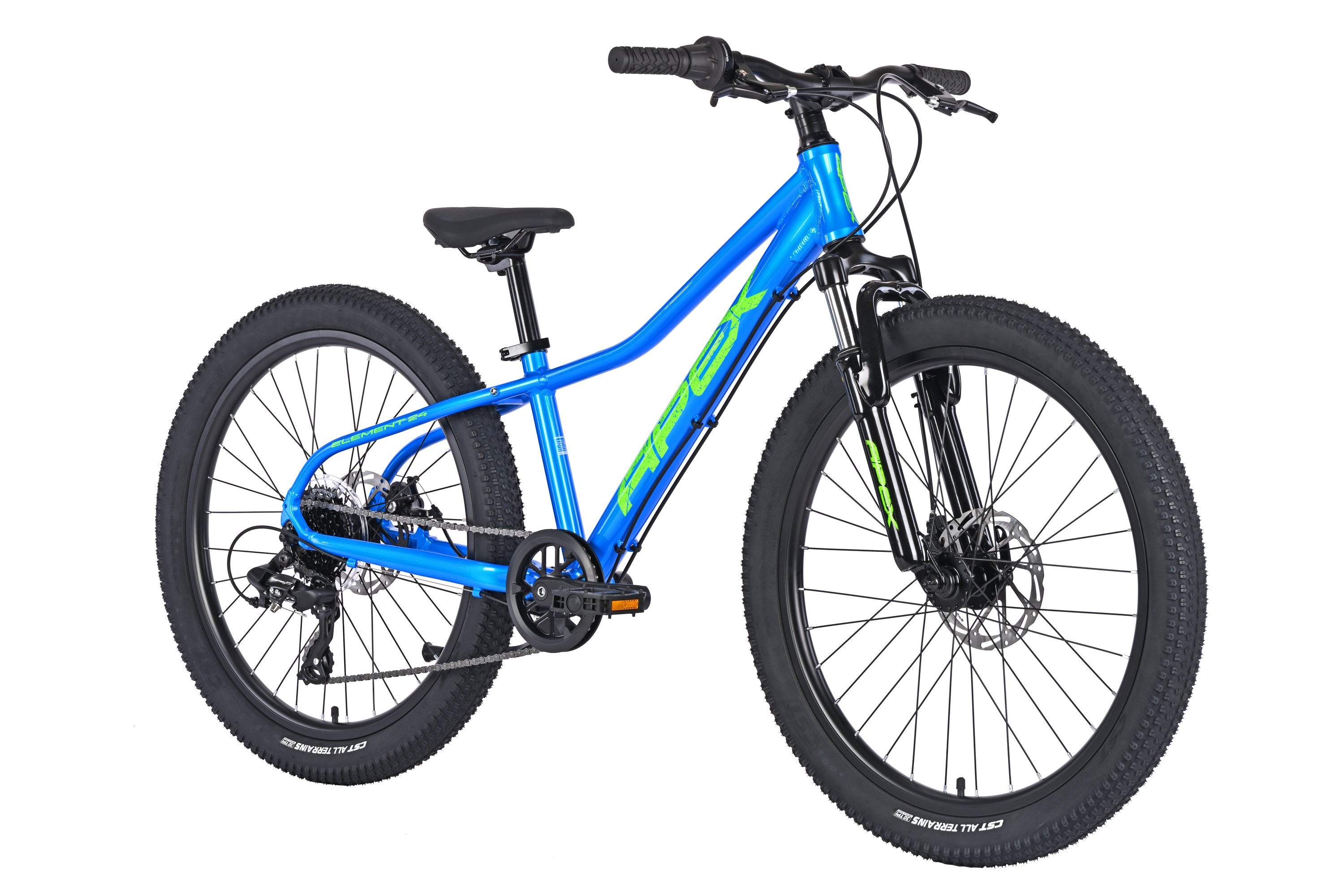

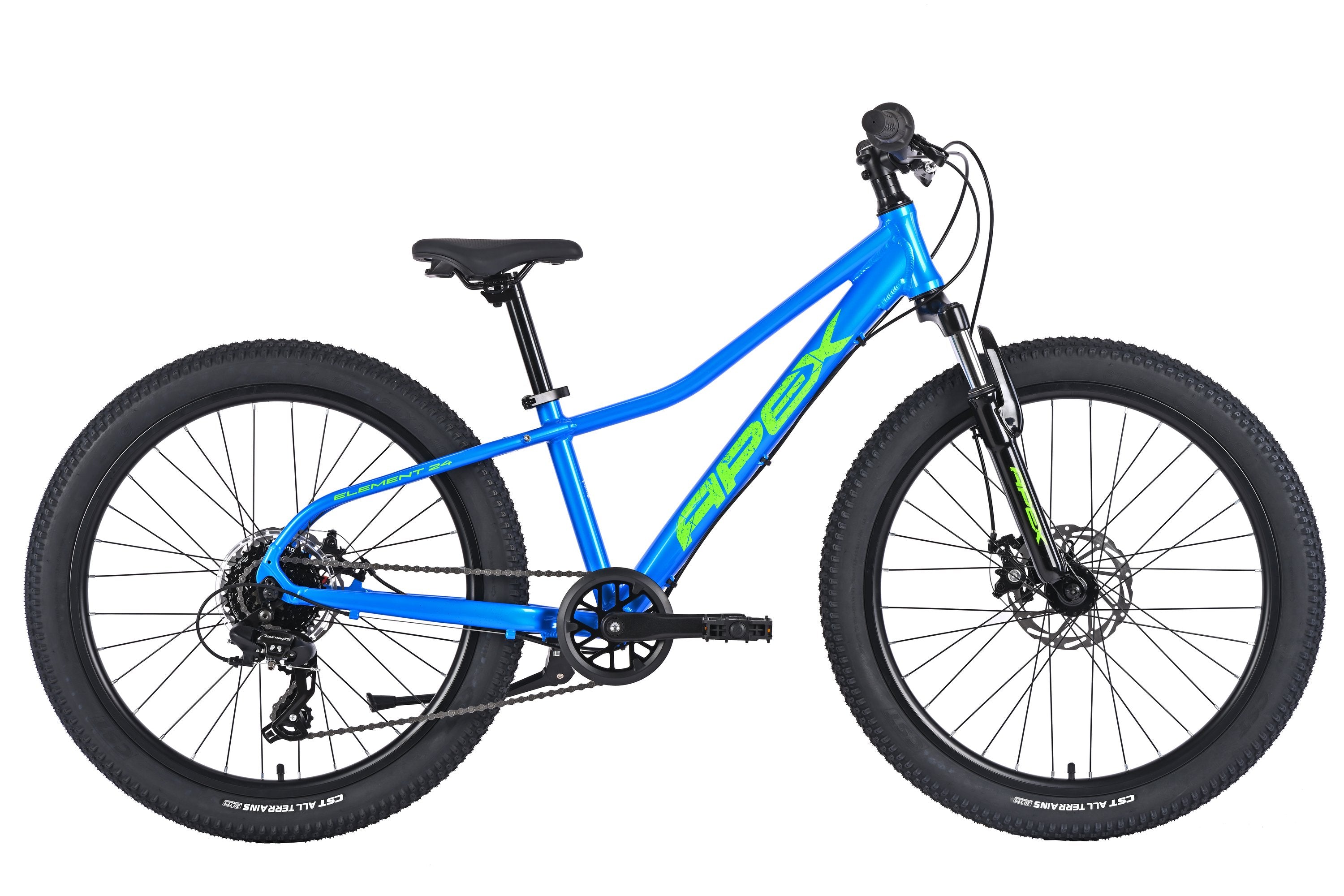

Apex Element 24” Disc – Pulse Blue
Apex Element 24” Disc – Pulse Blue
See The Bike

Apex Element 24" Disc

The Element 24 Disc is ready for bigger adventures, from neighbourhood rides and bike paths to exploring local trails. Its lightweight alloy frame provides easy, confident handling, while front suspension smooths out the bumps. Shimano 1 x 8-speed gearing makes tackling hills easy, with Tektro mechanical disc brakes delivering confident stopping power wherever the ride takes them.

Download Brochure (PDF)

$729.99
$729.99

Tax Inc.
Subtotal: $729.99
Colour: Coastal Teal
Size: One Size
Apex Element 24” Disc – Coastal Teal

Apex Element 24" Disc

$729.99
Apex Element 24” Disc – Coastal Teal
Apex Element 24” Disc – Coastal Teal
Apex Element 24” Disc – Shadow Black
Apex Element 24” Disc – Shadow Black
Apex Element 24” Disc – Pulse Blue
Apex Element 24” Disc – Pulse Blue

Apex Element 24" Disc

$729.99
Colour: Coastal Teal
Size: One Size

    Specification

    Frameset

    • Frame

      6061 24" Lightweight Alloy with low Standover and replaceable dropout

    • Fork

      Suspension HL CH-386E 24" with 40mm travel

    Wheels

    • Hubs

      Lightweight Alloy 32H front, 32H Cassette rear

    • Spokes

      Stainless Steel Black

    • Rims

      Alloy 32H Double Wall S/V

    • Tyres

      CST All Terrains 24 x 2.4"

    Drivetrain

    • Shifter

      Shimano Revo SL-RV400-8R 8 Speed

    • Rear Derailleur

      Shimano RD-TX800, Tourney TX 8 Speed

    • Crankset

      Alloy 3-Piece 152mm with 32T steel chain ring & double chain guard

    • Cassette

      Shimano Cassette HG200-8 12-32T 8 Speed

    • Chain

      KMC Z8

    • Pedals

      Resin youth platform with ball bearings

    Components

    • Brakeset

      Tektro MD-280 Mechanical disc, 160mm rotors

    • Brake Levers

      Alloy Short reach

    • Saddle

      Apex Junior Design 140mm with handle

    • Seat Post

      Alloy 27.2mm x300mm with Alloy QR seat clamp

    • Bar

      Lightweight Alloy 31.8mm, 25mm rise, 9 degree sweep, 620mm

    • Stem

      Lightweight Alloy ahead, 45mm, with Alloy cap

    • Headset

      Integrated 1 1/8" Ahead

    • Grips

      Apex MTB soft Kraton

    Accessories

    • Accessories

      Alloy Kickstand

    • Sizes

      24"

    Geometry
    Element 24" Disc
    A - Seat Tube

    305

    B - Top Tube Horizontal

    514.4

    C - Chain Stay

    430

    D - Headtube Length

    110

    E - Head Angle

    69

    F - Seat Angle

    73

    G - Wheelbase

    1001

    Standover

    579.7

    Stack

    521.4

    Reach

    355

    Crank Length

    152

    Stem Length

    45

    Size Guide
    9-12 years

    Height

    130-150cm
